Front Disc Brake Caliper compatible for Suzuki Grand Vitara 2006-13 19-B3215 19-B3214

SKU

300200015551

Skip to the beginning of the images gallery

Application

Compatible for Suzuki Grand Vitara l4 2.4L 2009-2013
compatible for Suzuki Grand Vitara V6 2.7L 2006-2008
compatible for Suzuki Grand Vitara V6 3.2L 2009-2010

OE/Part number

Driver Side（Left）：19-B3215，19B3215，19-P3215，19P3215，5510265J01999, 5510265J02999, 5510265J04999

Passenger Side（Right）：19-B3214，19B3214，19-P3214，19P3214，5510165J01999, 5510165J02999, 5510165J04999

Specification

Installation Position : Front Left and Right
Inlet Port Size :M10 x 1.0
Bleeder Port Size : M8 x 1.0
Bracket Thread Size：M12X1.25
Piston Diameter : 2.38in. / 60.6mm
Brake Piston Count：1 Piston
Piston Material：Steel
Pump body material: cast iron
Installation Hardware Included : Yes
Bracket : with

Package included

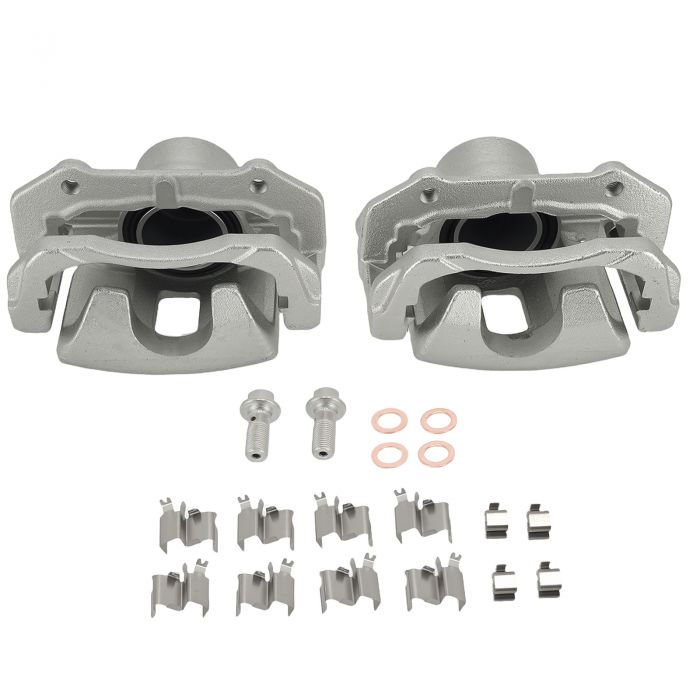

2 × Brake Calipers (Showing as the picture)
