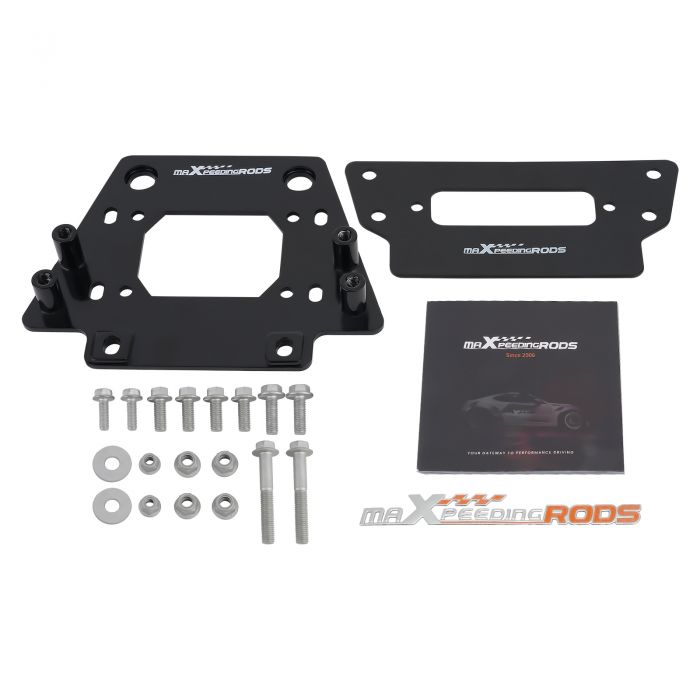

Front Heavy Winch Mount Plate Bracket Kit compatible for Kawasaki Teryx KRX 1000 20-24 UTV

SKU

300200001312

Skip to the beginning of the images gallery

Application

2020-2024 compatible for Kawasaki Teryx KRX 1000
2023-2024 compatible for Kawasaki Teryx KRX 4 1000"
!! NOTICE !! The KRX 4 will require the purchase of #UTV-WEK (Wire Extension Kit) Due to location of battery.

Dimension

Winch Mounting Pattern:
Standard 4-Hole 3"x4 7/8" (76mm x 124mm),
Wide 4 Hole 3"x 6 5/8" (76mm x 169mm),
2-Hole 3.10"(78mm )/3"(76mm)
Fairlead Mounting Pattern:
4 7/8" (124mm)

Feature

【FUNCTION】Offers a winch mounting Positon on front of Your UTV.
【WIDE APPLICATION】Can work with most US Standard winches and fairleads.
【MATERIAL】Made of Premium Solid Steel to achieve better durability and higher strength.
【PROCESS】Black powder coated: can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.
【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.
【INSTALLATION】Easy Bolt-on installation and takes about 45 minutes.（No drilling or modification required）
