Front Lowering Shocks 2-5 Drop compatible for Chevy/GMC C10 C15 1963-1987 2WD

SKU

300200010828

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Chevrolet C10 1963-1987
compatible for GMC C15 1963-1987
2WD only
note: These do NOT fit the R10 model

Specification

part type: lowering shock
drop height applicable: 2"-5"
location: front
Material: High Tensile Strength Steel
Finish: Powder coated
Bushing material:Rubber
Diameter of piston rod:12.5mm/ 0.49inch
Piston diameter:30mm/ 1.18inch
Outer cylinder diameter: 45mm/ 1.77inch
Extended length:378mm/ 14.88inch
Collapsed length:263mm/ 10.35inch
Travel range: 115mm/ 4.52inch
Nitrogen charged:Yes
Dust cover equipped:Yes

Package included

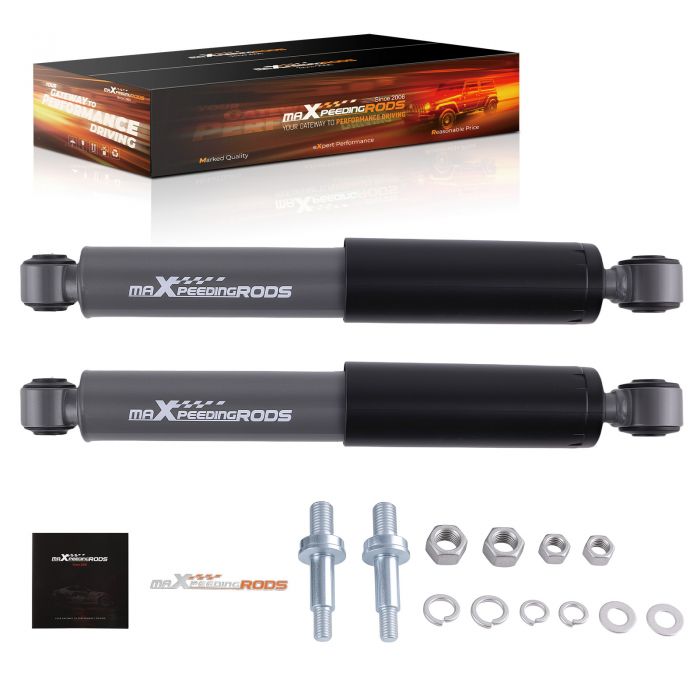

2x front shocks
package dimensions: 52*18*13 cm
weight: 4.25 kg

Feature

*High-pressure nitrogen charged twin-tube shock absorber with high durability.
*Rubber bushings for better absorption.
*Powder coated surface：provides superior corrosion resistance.
*12.5mm Chromed Hardened Piston Rod.
*30mm Diameter Sintered Iron Piston.
*45mm Shock Body helps Heat dissipation.
*Precision Welding.
*Easy bolt-on installation
*High Tensile Strength Carbon Steel for optimal durability and fitment.
*Dust cover helps protect product.
