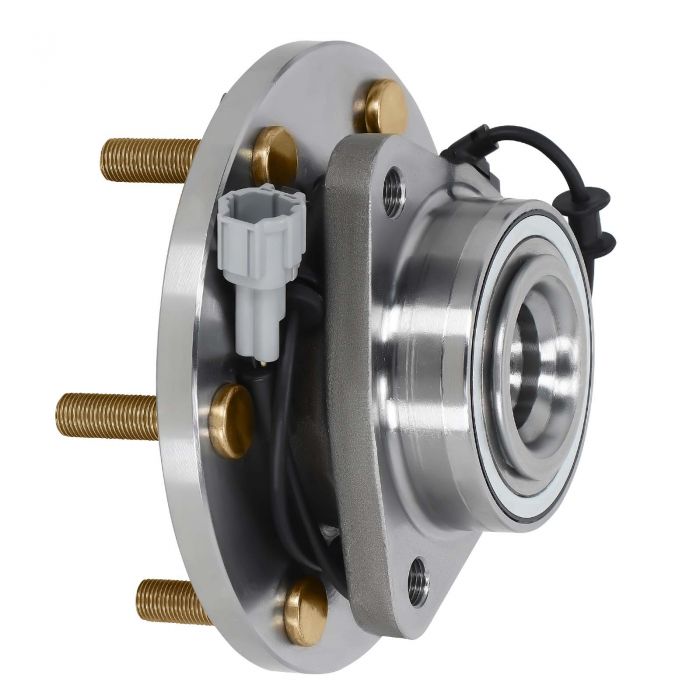

Front Wheel Bearing Hub For In-finiti QX56 2008-2010 Ni-ssan Armada 2008-2012

SKU

300200003535

Skip to the beginning of the images gallery

Application

For In-finiti QX56 2008-2010 [For 4WD Only]
For Ni-ssan Armada 2008-2012 [For 4WD Only ; To 11/2011]
For Ni-ssan Titan 2008-2012 [For 4WD Only ; To 11/2011]

OE/Part number

515125,WE61127,BR9303494, SP500703, BR930829, 538-50259, 538-50260, 40202ZR40B, 40202ZR00B

Specification

ABS Sensor Cord Included: Yes
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Brake Pilot Diameter (IN): 3.54
Brake Pilot Diameter (MM): 90
Connector Quantity: 1
Driven Or Non-Driven Type Hub Assembly: Driven
Flange Bolt Hole Quantity: 3
Flange Bolt Size (MM): M14 x 1.5
Flange Bolts Included: No
Flange Diameter (IN): 6.73
Flange Diameter (MM): 171
Flange Offset (IN): 1.79
Flange Offset (MM): 45.4
Flange Shape: Triangle
Hub Pilot Diameter (IN): 3.5
Hub Pilot Diameter (MM): 89
Spline Quantity: 29
Wheel Pilot Diameter (IN): 3.06
Wheel Pilot Diameter (MM): 77.7
Wheel Stud Quantity: 6
Wheel Stud Size (MM): M12 x 1.25
Wheel Studs Included: Yes
Generation: 3
Height (Inch): 4.7
Height (MM): 119.38
Length (Inch): 6.5
Length (MM): 165.1
Width (inch): 6
Width (MM): 152.4

Package included

Front Wheel Hub and Bearing Assembly*1

Feature

Pre-Greased and Pre-Sealed.
Multi-Lip seals provide water and debris contamination protection.
Each Hub Assembly is individually heat treated utilizing the latest digital machinery, ensuring high temperature resistance and durability.
Induction hardened raceways provide vibration free performance and durability
Rubberized ABS sensor wires (where applicable) are noticeably softer and more malleable than the competition.
Wheel studs, where included, have a protective coating that helps prevent rust and corrosion, enabling easier removal and proper torqueing of wheel nuts.
Fitment and performance are ensured by rigorous testing, measurements and inspection of materials and components.

Note

Installing on 2WD models will cause hub failure!
Before placing the order, please check your car model in the Amazon Fitment Filter System in the top left corner,Do not count on year make and model only.
Please view the compatability tab to verify this fits your specific vehicle. Do not count on year make and model only,view compatability tab including the notes.
