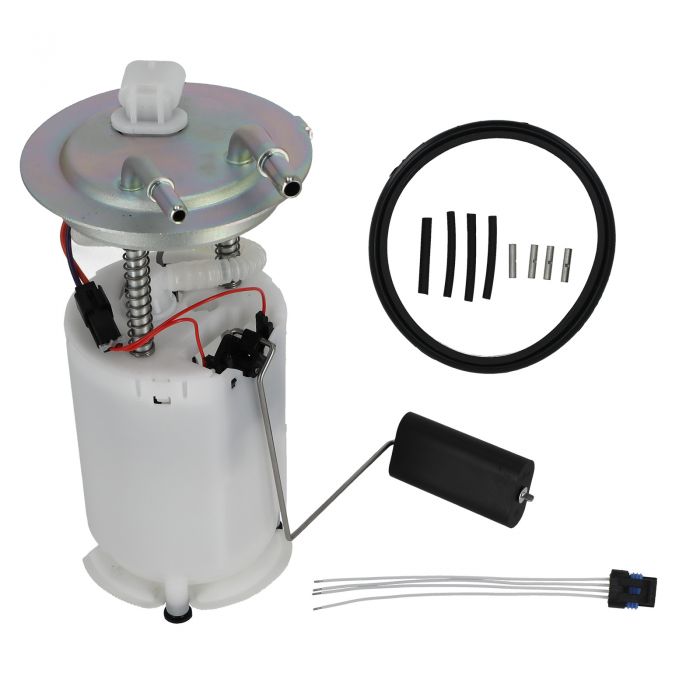

Fuel Pump Assembly E3549M compatible for Chevy Trailblazer compatible for GMC Envoy 4.2L 5.3L 2002-2004
Application
Compatible for Oldsmobile Bravada 4.2L L6 2002-2004
compatible for GMC Envoy 4.2L L6 2002 - 2004
compatible for GMC Envoy XL 4.2L L6 2002-2004
compatible for GMC Envoy XL 5.3L V8 2003-2004
compatible for GMC Envoy XUV 4.2L L6 2004
compatible for GMC Envoy XUV 5.3L V8 2004
compatible for Buick Rainier 4.2L L6 2004
compatible for Buick Rainier 5.3L V8 2004
compatible for Chevrolet Trailblazer 4.2L L6 2002-2004
compatible for Chevrolet Trailblazer compatible for EXT 4.2L L6 2002-2004
compatible for Chevrolet Trailblazer 5.3L V8 2003-2004
compatible for Chevrolet SSR 5.3L V8 2003-2004
compatible for Isuzu Ascender 4.2L L6 2003-2004
compatible for Isuzu Ascender 5.3L V8 2003-2004
OE/Part number
E3549M,MU1837,MU1835,MU1334,19206120,19206124,AM876266,88966950,402P3549M,88965820,15013514,15050444,15077623,237910,2630353,2920256,402-P3549M,530-2110,8-15050-444-0,8150504440,953-5132,A33014,AFS0893S,B11111014TG,C0195M,C8032,F2550A,FG0387,FG0411,M2510465,MPA33014,P3014M,P75053M,RE0893S,SP3549M,8150504440,15013514,15050444,15077623,19206122,FG0387,CFG0387,MU1376,67415-4,88965820-7,9535132,9535134,25331861
Specification
Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥21.12
Pressure(MPa): 0.3
Weight(kg): 0.82
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Quick coupling: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear
Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)
Feature
1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test
Note
1. Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
