Fuel Pump Assembly compatible for Ford F-250 F-350 F-450 Super Duty 2008-2010 E2509M

Application

Compatible for Ford F-250 Super Duty V10 6.8L 2008-2010
compatible for Ford F-250 Super Duty V8 5.4L 2008-2010
compatible for Ford F-350 Super Duty V10 6.8L 2008-2010
compatible for Ford F-350 Super Duty V8 5.4L 2008-2010
compatible for Ford F-450 Super Duty V10 6.8L 2008-2010

OE/Part number

E2509M,SP2303M,P74629H,FG1208,7C3Z9H307A,7C3Z9H307B,8C3Z9H307A,8C3Z9H307B,38861030,32300274,16116752626,16116755043,TU101,2202-520821,PFS-509,67895

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥39.6
Pressure(MPa): 0.3
Weight(kg): 1.233
Inlet Type: /
Inlet Quantity: /
Outlet Type: Quick connect
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

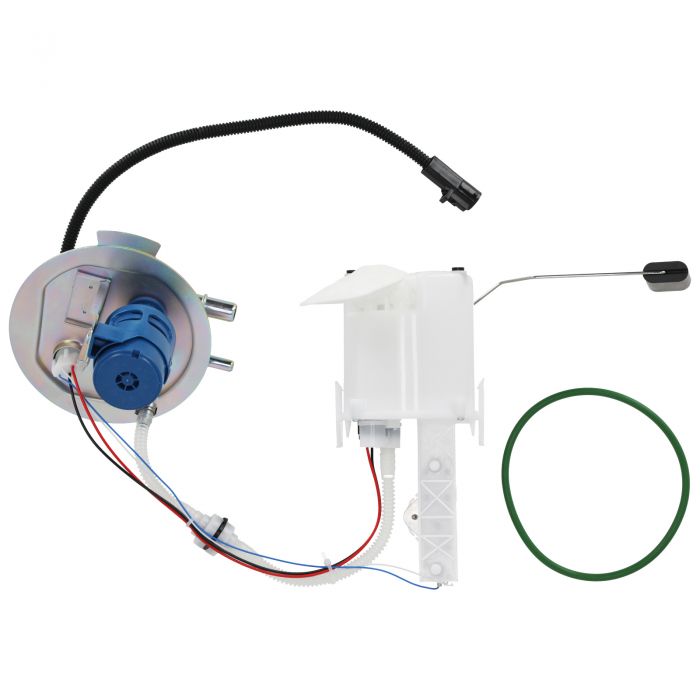

Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
