Fuel Pump Assembly compatible for Ford F-250 F-350 Super Duty 6.2L V8 2011-2016 BC3Z9H307A

SKU

300200012686

Skip to the beginning of the images gallery

Application

Compatible for Ford F-250 Super Duty V8 6.2L 2011-2014
compatible for Ford F-250 Super Duty V8 6.2L 2016
compatible for Ford F-350 Super Duty V8 6.2L 2011-2016

OE/Part number

E2582M,P76865M,E2584M,SP2485M ,SP2473M,SP2474M,SP2481M,SP2541M,FG1321,FG1326,FG2059,PFS600,4011072,A46235,A47026,C0922M,FG2060,P77280M,PFS614,BC3Z9H307A,BC3Z9H307B,BC3Z9H307C,BC3Z9H307D,CC3Z9H307A,BC3Z-9H307C,BC3Z-9H307D,PFS-600

Specification

Drive Type: Electrical
Fuel Type: Diesel
Voltage(V): 12
Flow Rate(Gallons/Hour): 34.3
Pressure(MPa): 0.3
Weight(kg): 1.2
Inlet Type: Hose Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

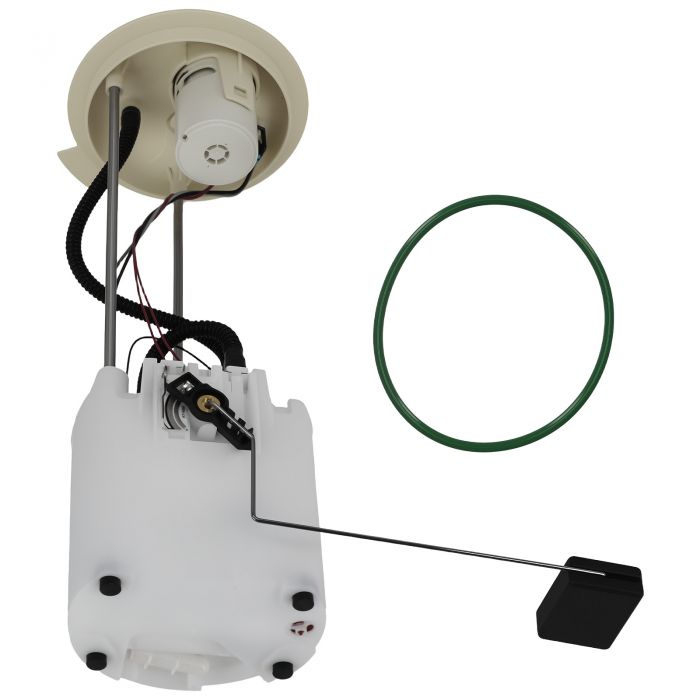

Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
