Fuel Pump Assembly w/Pressure Sensor compatible for Chevrolet C1500 C2500 C3500 compatible for GMC E3947M
Application
Compatible for Chevrolet C1500 V6 4.3L 1997-1998
compatible for Chevrolet C1500 V8 5.0L 1998-1999
compatible for Chevrolet C1500 V8 5.7L 1998-1999
compatible for Chevrolet C2500 V8 5.0L 1998
compatible for Chevrolet C2500 V8 5.7L1998-2000
compatible for Chevrolet C2500 V8 7.4L 1998-2000
compatible for Chevrolet C3500 V8 5.7L 1998-2000
compatible for Chevrolet C3500 V8 7.4L 1998-2000
compatible for Chevrolet K1500 V6 4.3L 1997-1998
compatible for Chevrolet K1500 V8 5.0L 1998-1999
compatible for Chevrolet K1500 V8 5.7L 1998-1999
compatible for Chevrolet K2500 V8 5.0L 1998
compatible for Chevrolet K2500 V8 5.7L 1998-2000
compatible for Chevrolet K2500 V8 7.4L 1998-2000
compatible for Chevrolet K3500 V8 5.7L 1998-2000
compatible for Chevrolet K3500 V8 7.4L 1998-2000
compatible for GMC C1500 V6 4.3L 1997-1998
compatible for GMC C1500 V8 5.0L 1998-1999
compatible for GMC C1500 V8 5.7L 1998-1999
compatible for GMC C2500 V8 5.0L 1998
compatible for GMC C2500 V8 5.7L 1998-2000
compatible for GMC C2500 V8 7.4L 1998-2000
compatible for GMC C3500 V8 5.7L 1998-2000
compatible for GMC C3500 V8 7.4L 1998-2000
compatible for GMC K1500 V6 4.3L 1997-1998
OE/Part number
E3947M,FG0086,P74757M,MU146,MU1745,67381,P75055M,TU426,P1597M,P461M,19177226,25314321,25178961,19331272,25314323,SP461M,9530009,9535043,323-01159,RYBB-013-EBAY02FC,GM0517238,19369943,RYBB-013-EBAY01FC,2531432,953-5043,6624-E,953-0009
Specification
Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥36.96
Pressure(MPa): 0.3
Weight(kg): 0.8551
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Mounting Hardware Included：Yes
Placement on Vehicle: Rear
Package included

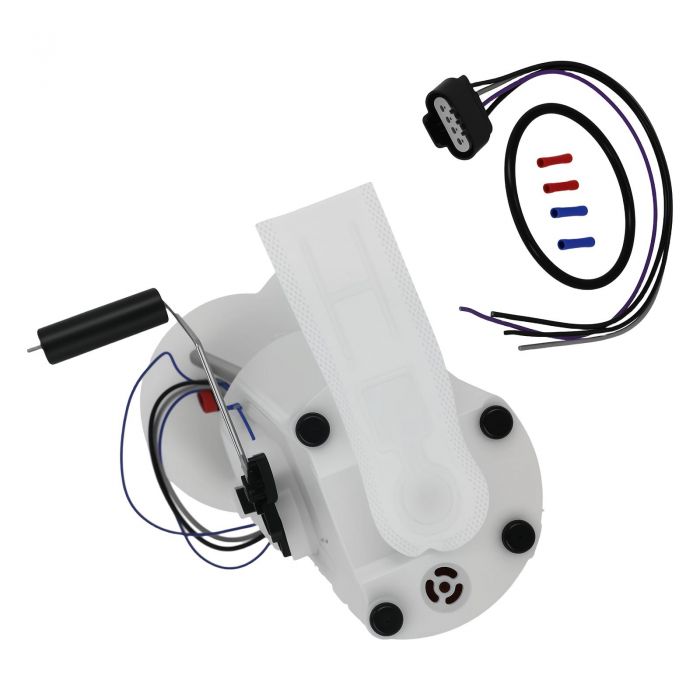

1X Fuel Pump Module Assembly (as shown in the pictures)
Feature
1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test
Note
1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
