Fuel Pump Module Assembly for 2016-2019 compatible for Kia Soul 1.6L 2.0L L4 FG2335 31110B2501

Application

Compatible for Kia Soul L4 1.6L 2016-2019
compatible for Kia Soul L4 2.0L 2016-2019

OE/Part number

FG2335, 31110B2501, 31110B2550, 31120B2501, 31120B2550, 94460B2000, 94460B2500

Specification

Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥35.7G/H
Pressure(MPa): 0.3
Outlet Type: SAE J2044 2099
Outlet Quantity: 1
Outlet Size：Ф7.89
Material: Plastic(POM)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: Internal
Placement on Vehicle: Rear (Fuel Tank)

Package included

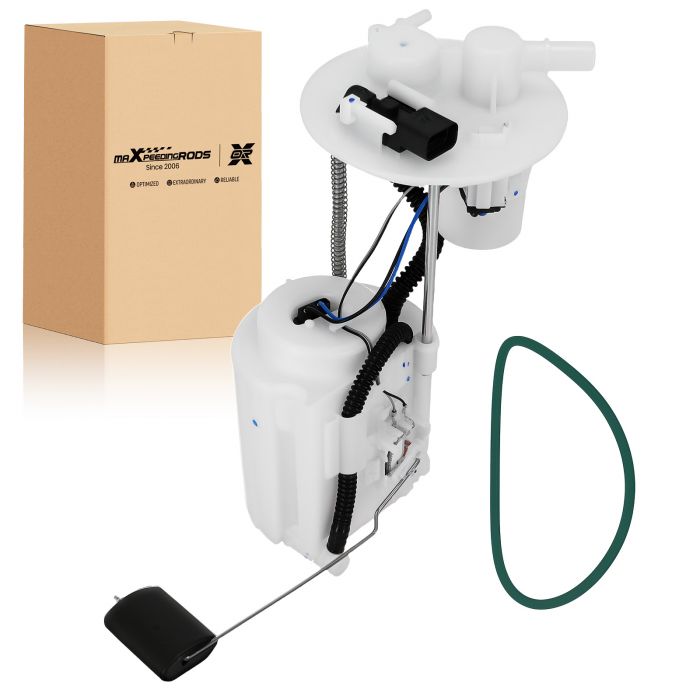

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
3.Due to the different display and different light, the picture may not reflect the actual color of the item.
