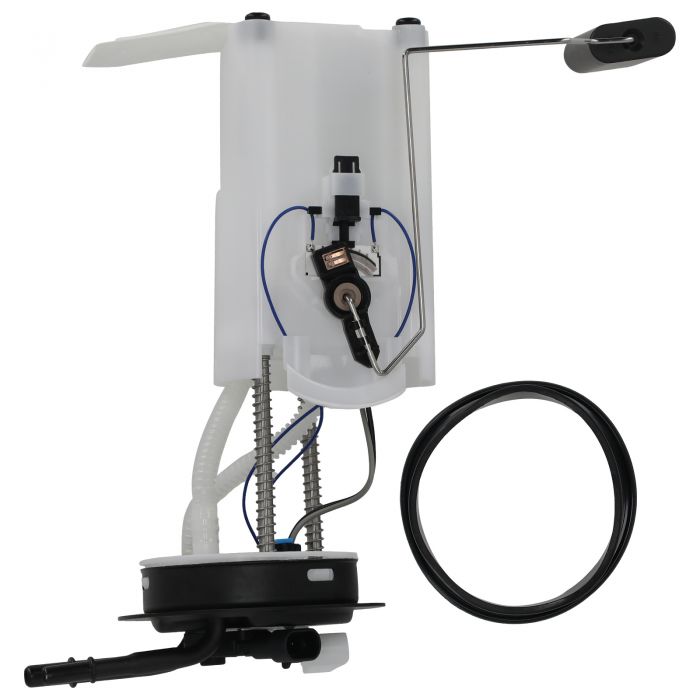

Fuel Pump Module Assembly compatible for Cadillac Escalade/Chevy Suburban 02-03 E3556M

Application

Compatible for Cadillac Escalade ESV V8 6.0L 2003
compatible for Cadillac Escalade EXT V8 6.0L 2002-2003
compatible for Chevrolet Avalanche 1500 V8 5.3L 2002-2003
compatible for Chevrolet Suburban 1500 V8 5.3L2002-2003
compatible for GMC Yukon Denali XL V8 6.0L 2002-2003
compatible for GMC Yukon XL 1500 V8 5.3L 2002-2003

OE/Part number

E3556M,FG0273,P75023M,P74832M,MU1738,MU1088,9535105,SP61088M,19180099,25345024,HK05233003CP,2630376,25340156,67458-4,674589535105,9530035, 67317,67458,F2567A

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥39.6
Pressure(MPa): 0.3
Weight(kg): 0.903
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear
Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
