Fuel Pump Module Assembly compatible for Chevrolet Corvette C4 5.7L V8 1989-1996

SKU

300200005132

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Chevrolet Corvette 5.7L V8 1989-1996

OE/Part number

HP10031,SP4118M,FG1558,19179534,25027510,25116881

Specification

Voltage(V): 12
Flow Rate(Gallons/Hour): ≥31.7
Pressure(MPa): 0.3Mpa
Weight(kg): 1.2KGS
Inlet Type: Strainer
Inlet Count: 1
Outlet Type: Tube
Quick coupling: Tube
Material: Iron
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Gasket Included: Yes
Seal Ring Included : Yes
Drive Type: Electrical
Fuel Type: Gasoline
Placement on Vehicle: Fuel Tank(Back of Vehicle)
Internal Or External: Internal
Terminal Gender: Female
Items Included: Mounting Hardware

Package included

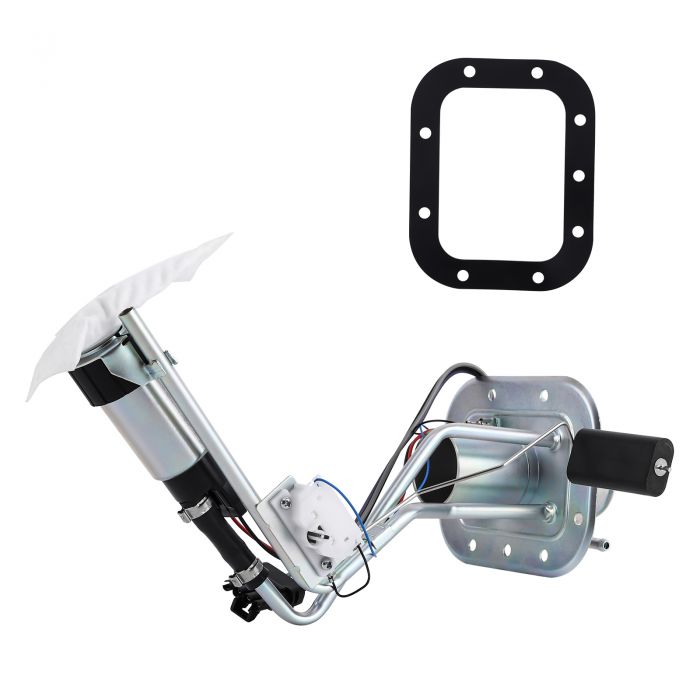

1× Fuel Pump With Sending Unit
(As shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

INSTALLATION TIPS:
1. Clean the dirt around the gasket of the fuel pump with a high-pressure gun and cleaner.
2. Seal the fuel tank after the fuel pump is disassembled to prevent dust from entering the tank.
3. Remove the paired fuel pump and keep the table clean.
4. Please clean the bottom of the tank or pipeline before replacement.
