Fuel Pump Module Assembly compatible for Chevy Kodiak compatible for GMC Topkick 2006-2008 8.1L V8 Rear

Application

Compatible for Chevrolet C4500 Kodiak V8 8.1L 2006
compatible for Chevrolet C4500 Kodiak V8 8.1L 2007-2008
compatible for Chevrolet C5500 Kodiak V8 8.1L 2006
compatible for Chevrolet C5500 Kodiak V8 8.1L 2007-2008
compatible for Chevrolet C6500 Kodiak V8 8.1L 2006-2008
compatible for Chevrolet C7500 Kodiak V8 8.1L 2006-2008
compatible for GMC C4500 Topkick V8 8.1L 2006
compatible for GMC C4500 Topkick V8 8.1L 2007-2008
compatible for GMC C5500 Topkick V8 8.1L 2006
compatible for GMC C5500 Topkick V8 8.1L 2007-2008

OE/Part number

E3697M,SP6103M,P76346M,19122158,19122157,F2608A,A43024,C21112951TG,D0256M,M3520856,MU1507,13601546-101

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥42.24
Pressure(MPa): 0.3
Weight(kg): 1.2495
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

Package included

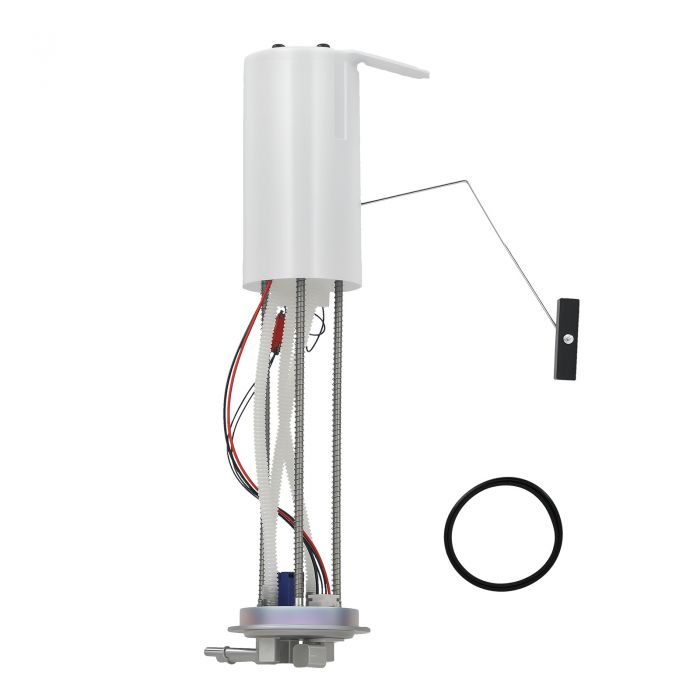

1X Fuel Pump Module Assembly (as shown in the picture)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
