Fuel Pump Module Assembly compatible for Ford F-150 04-08 compatible for Lincoln Mark LT 06-08 E2533M

SKU

300200012539

Skip to the beginning of the images gallery

Application

Compatible for Ford F-150 V8 4.6L 2005-2008
compatible for Ford F-150 V8 5.4L 2004-2008
compatible for Lincoln Mark LT V8 5.4L 2006-2008

OE/Part number

E2533M,P76343M,FG0845,FG0846,69165,5L3Z9H307BB,6L3Z9H307B,7L3Z9H307B,8L3Z9H307B,4L3Z9H307-B,8L3Z9H307-B,8L3Z9H307-K,6L349H307-B,7L3Z9H307-B,SP2004M,SP2070M,C-0132-M,PN3123,TU270,FG0850,FG0583,5L3Z9H307AB,4L3Z9H307CF,6L3Z9H307A,7L3Z,9H307-E,4L3Z,9H307-C,9H307-A,9H307-BF,9H307-B

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥44.88
Pressure(MPa): 0.3
Weight(kg): 0.9048
Inlet Type: Quick Connector
Inlet Quantity: 3
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

Package included

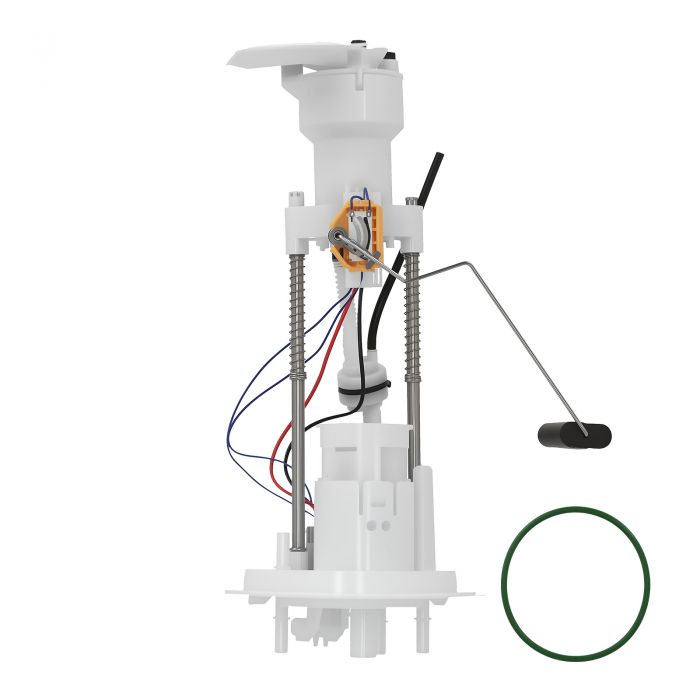

1X Fuel Pump Module Assembly (as shown in the picture)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
