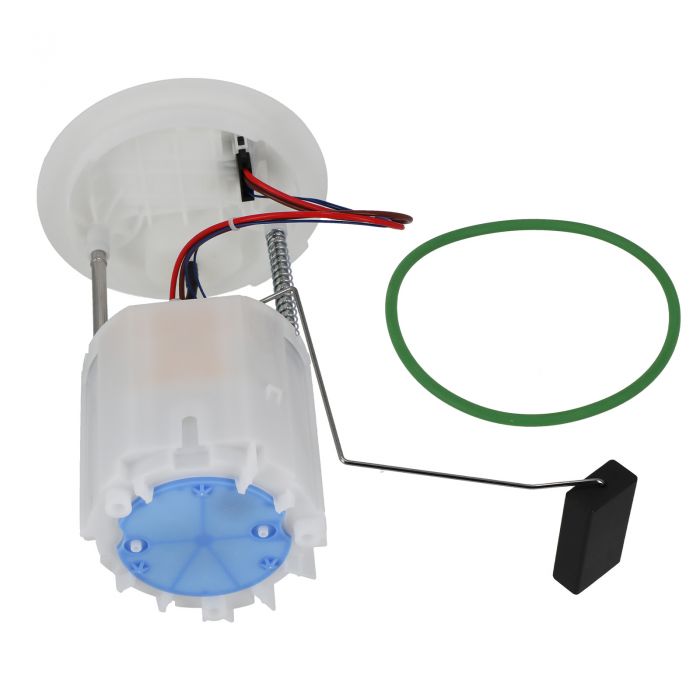

Fuel Pump Module Assembly compatible for Mercedes ML350 GL450 GL550 ML500 06-12 1644701694

SKU

300200016476

Skip to the beginning of the images gallery

Application

Compatible for Mercedes-Benz ML500 5.0L 4966CC 303Cu. In. V8 2006-2007
compatible for Mercedes-Benz ML350 3.5L 3498CC V6 2006-2011
compatible for Mercedes-Benz GL450 4.7L 4663CC 285Cu. In. V8 2007-2012
compatible for Mercedes-Benz GL550 5.5L 5461CC 333Cu. In. V8 2008-2012

OE/Part number

E8924M,FG1163,SP5114M,SP5120M,1644701994,A1644701994,1644701694,A1644701694,1644702194,A 164 470 19 94 1994,A 164 470 16 94 1694

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12V
Flow Rate(Gallons/Hour): ≥44.88
Pressure(MPa): 0.55MPa
Weight(kg): 0.9249
Inlet Type: /
Inlet Quantity: 0
Outlet Type: Quick Conncet
Outlet Quantity: 1
Material: POM+Steel
Housing Material: Plastic
Fuel Sending Unit Included: No
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

Package included

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
