Fuel Pump Module Assembly compatible for Toyota C-HR 2.0L L4 2018-2022 77020F4040

Application

Compatible for Toyota C-HR 2.0L 1987CC 121Cu. In. l4 GAS DOHC Naturally Aspirated 2018-2022

OE/Part number

FG2263,77020F4040, 77020-F4040

Specification

Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12 V
Flow Rate: ≥27.7 GPH
Pressure: 29 PSI
Inlet Type: SAE J2044 2099
Inlet Quantity: 1
Inlet Size：0.74 IN
Outlet Type: SAE J2044 2099
Outlet Quantity: 1
Outlet Size：0.31 IN
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Strainer Included: Yes
Internal Or External Strainer: External

Package included

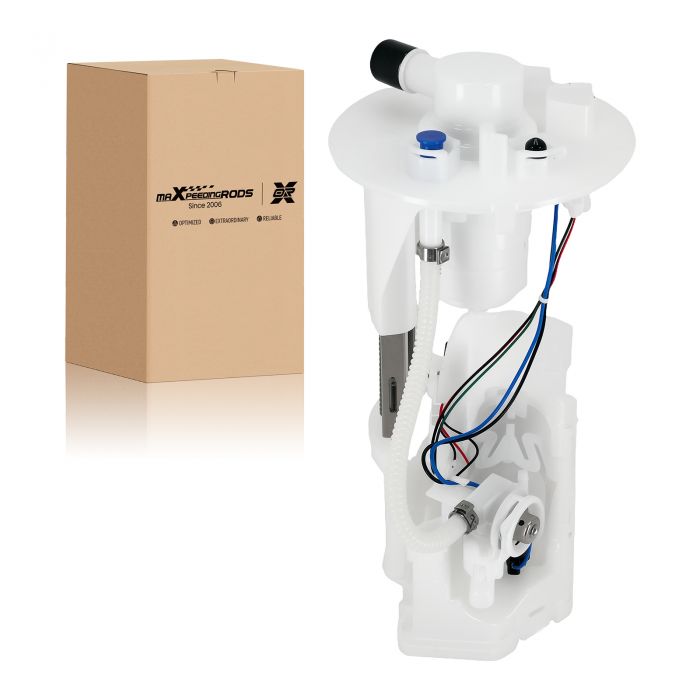

1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

Please verify compatibility with your vehicle before installation
Do not return without contacting customer service first
Keep item in original packaging if returning
Avoid exposure to extreme conditions during storage
Follow proper installation guidelines for best results
