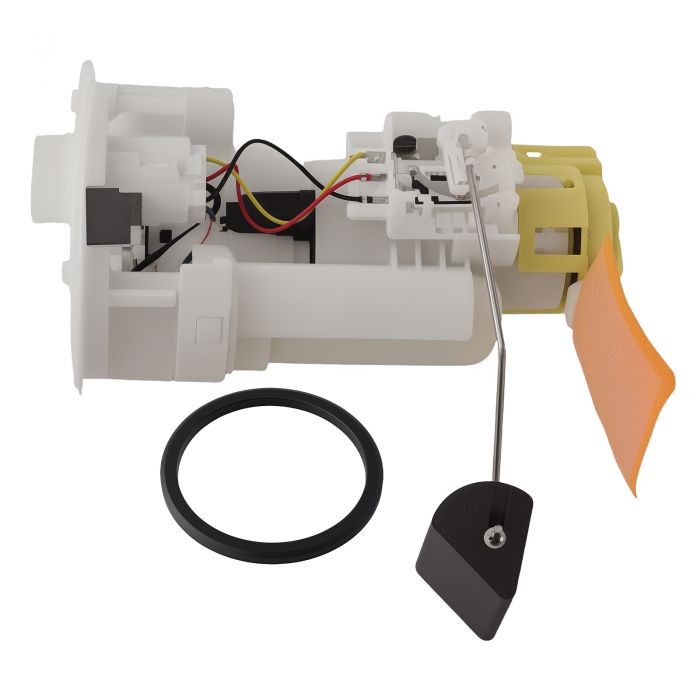

Fuel Pump Module Assembly compatible for Toyota Camry 2.4L 2002-2006 77020-33100

SKU

300200012694

Skip to the beginning of the images gallery

Application

Compatible for Toyota Camry 2.4L l4 2002-2006
compatible for Toyota Camry 3.0L V6 2002-2006
compatible for Toyota Camry 3.3L V6 2004-2006

OE/Part number

E9366M,SP9158M,847GE,P77372M,232170C010, 232210A040, 7716933020,77024-06020,77020-33210,77020-33100,77020-33110,232170C010,
7778506020, 90159A0022, 232490A020,7702406020

Specification

Drive Type: Electrical
Fuel Type: Petrol
Voltage(V): 12
Flow Rate(Gallons/Hour): 26.4
Pressure(MPa): 0.3
Weight(kg): 0.9
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear
Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
