Fuel Pump Module compatible for Mercury Grand Marquis V8 4.6L 03-2009 w/ Fuel Sending Unit

Application

Compatible for Ford Crown Victoria V8 4.6L 2003-2010
compatible for Lincoln Town Car V8 4.6L 2003-2009
compatible for Mercury Grand Marquis V8 4.6L 2003-2009
compatible for Mercury Marauder V8 4.6L 2003-004

OE/Part number

E2336S,SP2336H,P2336S,FD0517391,HP10233,P76025S,PFS205,E8460S,3W1Z9H307AA,3W1Z9H307AB,4W1Z9H307AA,
32301678,953-4032,RE0510S,100001645,67249,150166,1234682,2930387,5256010,402P2336S,A43011,C0096H,C12112731TG,HP10136,HS3510459,PFS287,FE0419,150166-A,3W1Z9H307-AA,3W1Z9H307-AB,4W1Z9H307-AA,525-6010

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥34.32
Pressure(MPa): 0.3
Weight(kg): 1.2543
Inlet Type: /
Inlet Quantity: /
Outlet Type: Quick connect
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear (Fuel Tank)

Package included

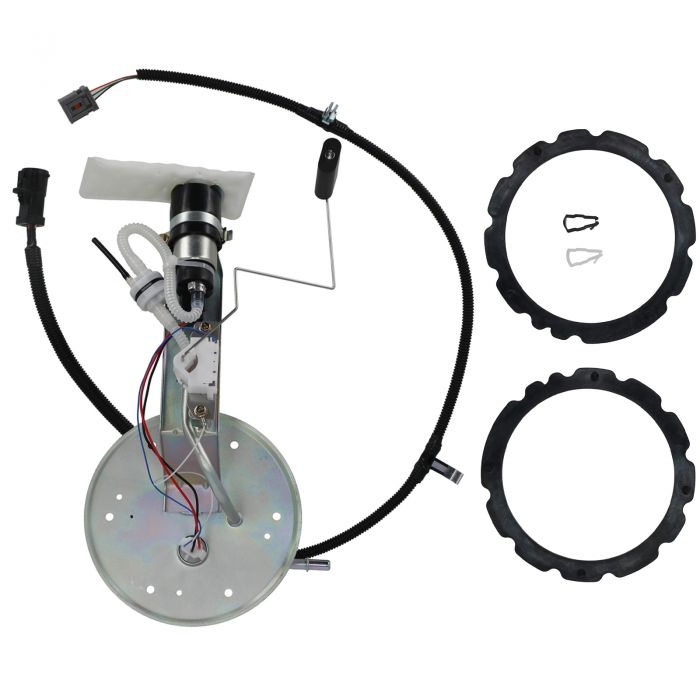

1X Fuel Pump Module Assembly (as shown in the picture)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1. Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
