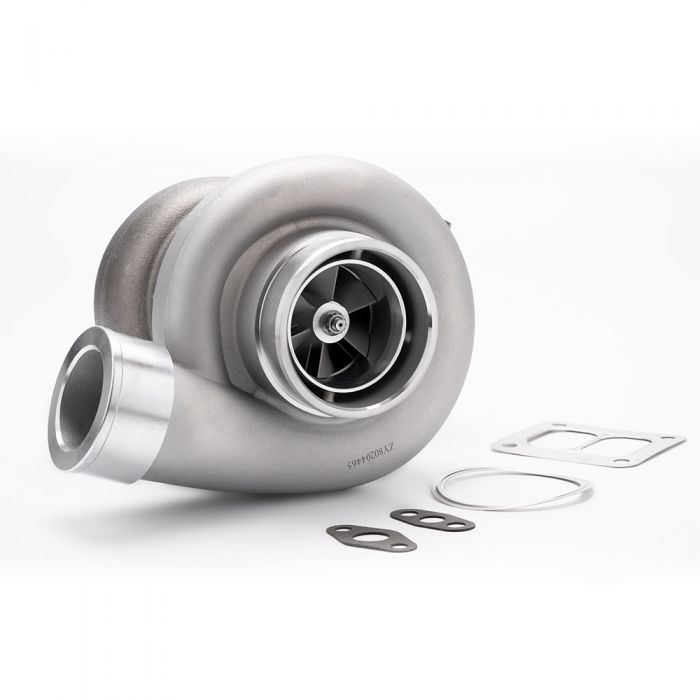

GT45 turbo V-band Turbocharger T4 TWIN-SCROLLWet Float A/R .66 A/R 1.05 600+BHP

SKU

3002032385

Skip to the beginning of the images gallery

Notice: This product must be installed by a licensed mechanic and used in compliance with local modification regulations. Due to state emissions regulations, this product cannot be sold or shipped to customers in California (CA) or New York (NY).

Cost effective turbocharger give your car 20-40% power than a non-turbo car of the same year, make and model

Ductile Iron QT450-10, the material used for the exhaust housing, is temperature resistant up to 700℃

K418 Alloy, the material used for the exhaust impeller, has high oxidation resistance & stability (resistance up to 900℃)

The cast aluminium blades are great airtight seal, airflow, light weight, and corrosion resistant

Description

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for. Don't hesitate to get a turbo to boost your car's power.

Application

This turbo is a universal application street turbo, some modification may be required based on individual vehicle.
Perfect for all 4.0L-6.0L engine
Horse Power: Capable of boosting horse power up to 600BHP

Specification

Exhaust Inlet (Turbo Manifold) Flange: T4 Flange
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Compressor Trim: 49.6
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor Air Inlet Size: 107mm
Compressor Air outlet Size: 86.3mm
Compressor A/R: 0.66
Turbine Trim: 77.6
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05
Bearing Type: Wet Float
Cooling Type: Oil Cooled
Wastegate: External
Warranty: one year for any manufacture defects

Features

1. Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
3. Compressor housing：ZL104 aluminum.
4. Compressor wheel/blades:
- Cast Aluminium with good gas tightness and corrosion resistance.

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended(No Instruction Included).
