GT45 T4 V-Band Flange 1.05 A/R 98mm UP TO 600+HP Turbocharger
Notice: This product must be installed by a licensed mechanic and used in compliance with local modification regulations. Due to state emissions regulations, this product cannot be sold or shipped to customers in California (CA) or New York (NY).
Application
This turbo is a universal application turbo, some modification may be required based on individual vehicle.
Perfect for all 4.0L-6.0L engine
Specification
Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange: V-Band Flange（ID: 82mm, OD: 111mm）
Compressor Trim: 49.6
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor Air Inlet Size: 107mm
Compressor Air outlet Size: 86.3mm
Compressor A/R: 0.66
Turbine Trim: 77.6
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05
Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25
Bearing Type: Wet Float
Cooling Type: Oil Cooled
Wastegate：Without Wastegate
Hosepower: Up to 600+HP
Turbo Type:Individual
Universal Fitment:No
Finish:Matte
Condition: 100% Brand New
Package Size:30x 30x 27 cm
Package Weight: 16400g

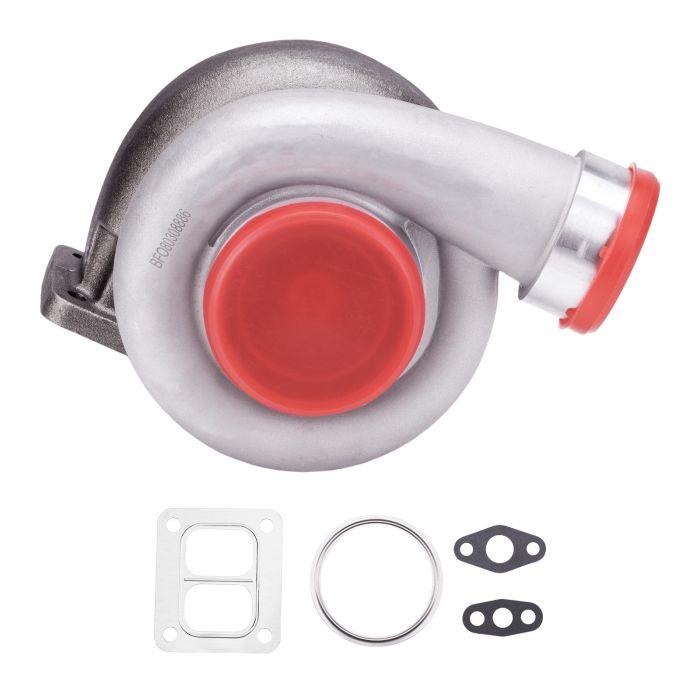

Package included
1xTurbocharger
1xAdapter
1xFlange gasket
2xOil port gaskets
Feature
1. Cost-effective Turbo increase 20-40% power for your car
2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃
3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. ZL104 aluminum compressor housing with lightweight
6. 100% balancing Test by TURBOTECHNICS VSR3
Note
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not OE parts. Please check the specifications and compatibility before purchasing.
* Before installation, please check the oil supply sufficient,clearnliness the air filter and gasoline,and the gasoline air tightness.
