H Beam 6.100 2.225 .945 Bronze Bush 4340 Connecting Rods compatible for Chevy LS3 V8

SKU

300200011428

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Chevy LS3 V8 6.100"

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

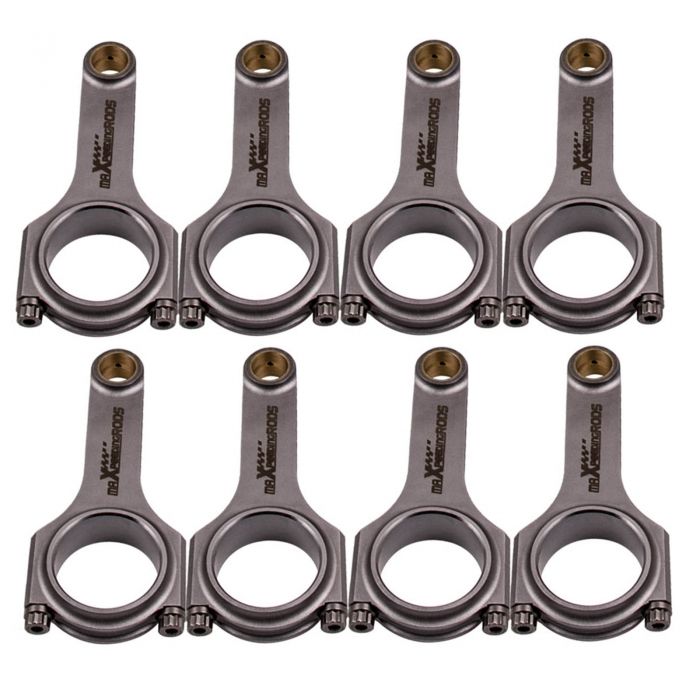

*H-beam Conrods Quantity: 8 Pieces as showing in picture
*Bolts: Including ARP 8740 7/16" bolts
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：29CM*22CM*14CM

Dimension

Center to center length:154.95mm/6.100"
Big end diameter:56.51mm/2.225"
Small end diameter:23.99mm/0.945"
Big end width:24.00mm/0.945"
Small end width:24.00mm/0.945"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Genuine ARP 8740 16pcs bolts ；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
