Heavy-Duty Yoke Puller Semi Truck Yoke Remover Tool Kit for Class 6-8 trucks

SKU

300200001237

Skip to the beginning of the images gallery

Introduction

Used to Remove Commercial Heavy-Duty Yokes on Transmissions and Rear-End Differentials Without Damage to Yokes or Other Components.

Application

For use on yokes with a bearing diameter between 1-7/8" and 2-3/16"
For example：
for Class 6-8 trucks
for Spicer and Meritor 1610, 1710, 1760, 1810 Series
for Spicer SPL 140, 170, 250 Series
for Meritor/Rockwell RPL 20, 25 Series

OE/Part number

60050

Specification

Material: 45# steel

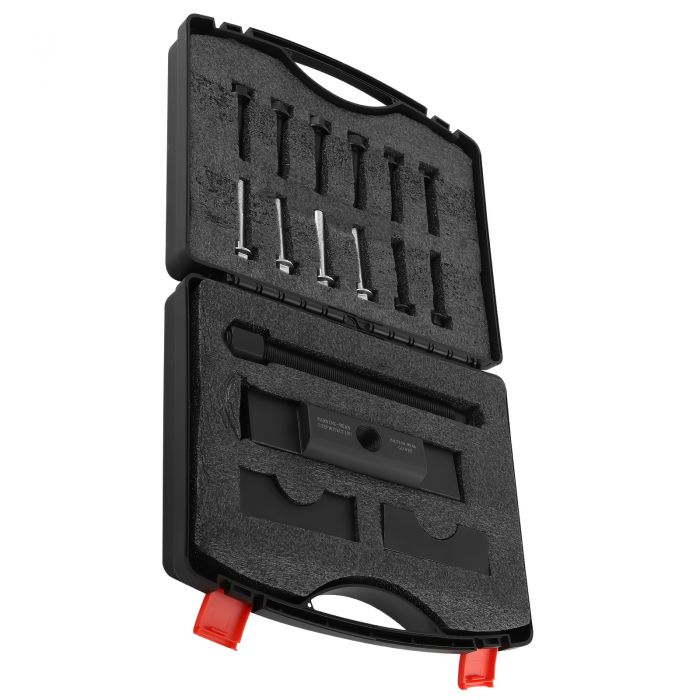

Package included

1 x Pull Body
1 x Puller Screw
2x Clamp Blocks
4x 3/8-24 Flange Bolt
4x M12x1.25 Flange Bolt
4x 1/2-20 Flange Bolt
1x Storage compatible for Case

Feature

1. WIDE APPLICATION: These Heavy-Duty Yoke Puller use on yokes with a bearing diameter between 1-7/8" and 2-3/16", Works for class 6-8 transportation trucks and equipment.
2. GREAT DESIGN: Yoke puller tool Kit comes with strong, grade eight bolts, which can firmly clamp the yoke and remove the yoke safely. The long handle provides additional leverage, providing a more accurate and controlled disassembly process, saving time and energy.
3. Upgrade design：The precision milling and chamfering of the tie rod can extend the service life of the compression screw better.

Note

Professional installation is highly recommended.
Please double confim the compatibility as well as the OEM number before purchasing
