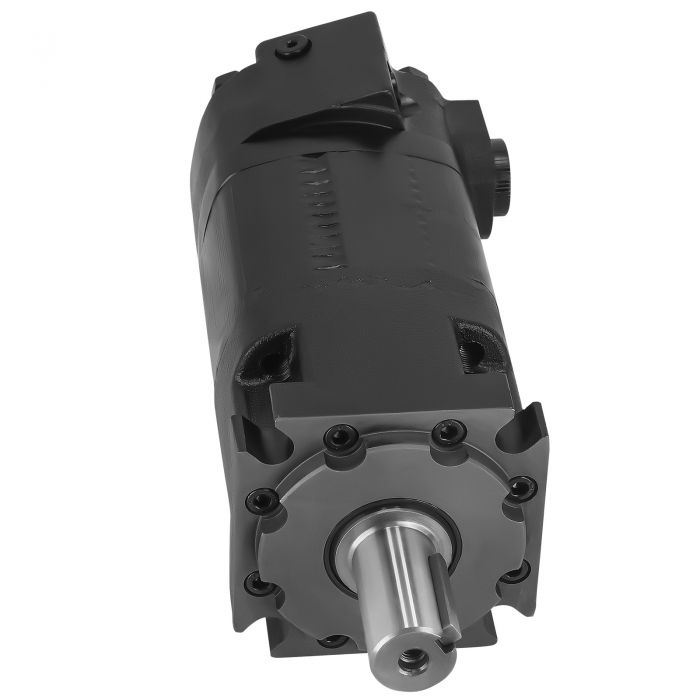

Hydraulic Motor 109-1215-006 109-1215 For Eaton Char-Lynn 4000 Series 4 Bolt NEW

SKU

300200006478

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

For Eaton Char-Lynn 4000 Series Motor

OE/Part number

109-1215-006,109-1215,1091215006,1091215

Specification

Material: Iron
Type: Hydraulic Motor
Fitment Type: Direct Replacement
Displacement: 623.9 CM3/R [38.07 IN3/R]
Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia 14.7 [.58] Slots On 127.00 [5.000] Dia.Bolt Circle. (Sae B)
Output Shaft: 31.75 [1.250] Dia. Straight With .375-16unc-2b Thread, 53.1 [2.09] Max Coupling Length, 7.938 [.3125] Sq X 41.27 [1.625] Straight Key
Ports: 1.0625-12 Un-2b Sae O-Ring Ports - Staggered Ports
compatible for Case Flow Options: .4375-20 Unf-2b Sae O-Ring Port With Check Valve
Color: Black

Package included

1*Hydraulic Motor
（Showing as the picture）

Feature

1.Stable characteristics, high reliability.
2.Made of high-strength iron housing, protecting the shaft inside very well, solid and durable, long service time.

Note

1. Professional installation of the product is highly recommended.
2. Please double confirm the compatibility as well as the OEM number before purchasing.
