I-Beam Forged Connecting RodsARP 2000 Bolts compatible for Honda K20 K20A2 K20Z1 K20Z3
SKU
3002910886
<p><strong>Application</strong></p><p><span><span>
Compatible for Honda K20 K20A2 K20Z1 K20Z3<br><b><font color="#ff0000">
Note: Not For K20A3</font></b><br>
Compatible for Honda Civic 2.0L 06-11,K20Z3<br>
Compatible for Acura RSX 2.0L 05-06,K20Z1<br>
Compatible for Acura RSX 2.0L 02-04,K20A2<br>
Pin Type: Floating Pin Piston </span></span></p>
<p><br></p>
<div>
<p><span><span><strong>Specification</strong></span></span></p>
<p><span><span>*Type: Forged 4340 aircraft chrome moly quality steel for racing <br>

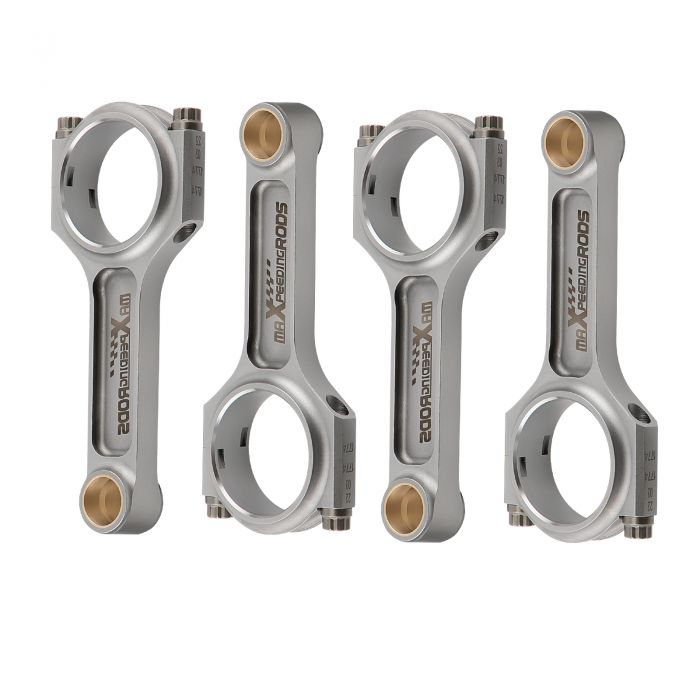

*I-beam Conrods Quantity: 4 Pieces as showing in picture <br>
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts) <br>
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product. <br>
*Advertised Horsepower Rating:200HP/piece <br>
*Top acceleration: 9000rpm <br>
*package size：28CM*21CM*10CM</span></span></p>
<p>* Warranty: one year warranty for any manufacturing defect</p>
<p><br></p>
<p><span><span><strong>Dimensions</strong><br>
Center to center length:139mm/5.472"<br>
Big end diameter:51mm/2.008"<br>
Small end diameter:22mm/0.866"<br>
Big end width:19.8mm/0.78"<br>
Small end width:19.8mm/0.78"</span></span></p>
<p><br></p>
<p><span><span><strong>Feature</strong></span></span></p>
<p><span><span>1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；<br>
2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；<br>
3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；<br>
4.I-Beam reduce inertial force withstand the high gas pressure；<br>
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；<br>
6.High precision CNC machined,Precision rod cap alignment dowels；<br>
7.Bores finished to +/- .01 mm；<br>
8.Balanced to within +/- 1 g per rod；<br>
9. Each rod is magnetic particle tested to ensure free of flaws；<br>
10.Use X-rayed, sonic tested；<br>
11.Custom Service.</span></span></p>
<p><br></p>
<p><span><span><strong>Note</strong></span></span></p>
<p><span><span>*Professional installation is highly recommended ；<br>
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.</span></span></p></div>
