Impeller Assembly compatible for Yamaha 25-40HP T25/F30/F40 2000-08 18-3413

SKU

300800000351

Skip to the beginning of the images gallery

Application

For the Following 25HP compatible for Yamaha 4 Stroke Outboards:T25 (2001-06)
For the Following 30HP compatible for Yamaha 4 Stroke Outboards:F30 (2001-05),
For the Following 40HP compatible for Yamaha 4 Stroke Outboards:F40 (2000-06), F40B (2007-08)

OE/Part number

66T-W0078-00,66T-44311-00,66T-W0078-01-00,66T-W0078-00-00,66T-44311-00-00,18-3413,18-3440

Specification

Type:Outboard Water Pump Impeller Repair Kit
Material：Rubber+Stainless Steel+Plastic

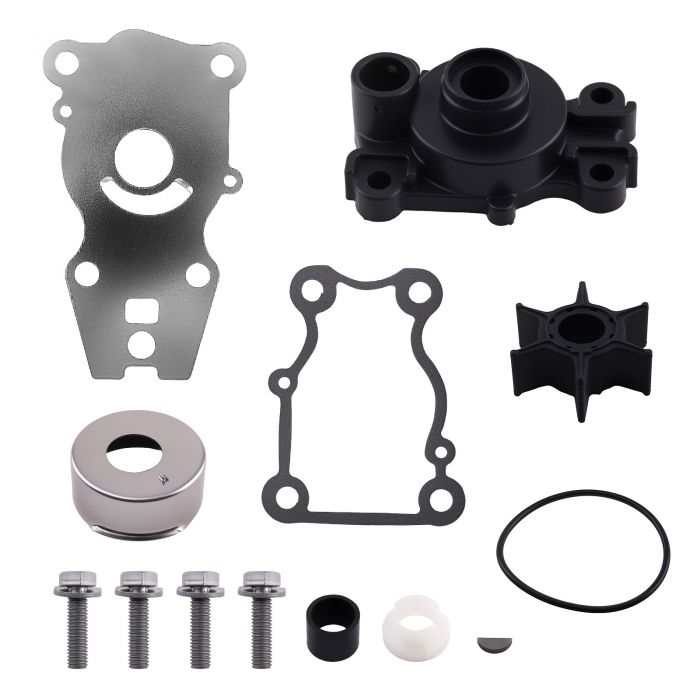

Package included

1* Water Pump Impeller 6H4-44352-02-00
1*Gasket, Pump compatible for Case 63D-44316-00-00
1*Plate, Impeller 66T-44323-00-00
1* Key, Impeller 90280-03M03-00
1*Cup, Insert 63D-44322-00-00
1*Bolt (Set of 4) 90119-08M15-00
1*Cover, Pump Housing 63D-44312-00-00
1*O-Ring 93210-59MG7-00
1*Seal, Water 663-44366-00-00
4*Washer 90209-08M02-00
1*Water Pump Housing 66T-44311-00-00
(It same to the picture shown )
