Impeller Kit compatible for Yamaha 2 Stroke 60-90HP 688-44322-00 692-W0078-02-00

SKU

300800000430

Skip to the beginning of the images gallery

Application

Compatible for Yamaha Outboard 2 Stroke 70 75 80 85 90 hp Motors
For the Following 60HP compatible for Yamaha 2 Stroke Outboards:60hp 2004-2005 year
For the Following 70HP compatible for Yamaha 2 Stroke Outboards:70hp 2004-2009 year
For the Following 75HP compatible for Yamaha 2 Stroke Outboards:C75 1994-1999 , E75 1995-2000 , P75 1996-1999
For the Following 80HP compatible for Yamaha 2 Stroke Outboards:C80 1997 Year
For the Following 85HP compatible for Yamaha 2 Stroke Outboards:C85 1991-1996 , CV85 1989-1990
For the Following 90HP compatible for Yamaha 2 Stroke Outboards:90 1984-2009 , 90 Jet 1986-1989 , B90 1997-1999 , C90 1997-2001

OE/Part number

692-W0078-00-00,692-W0078-01-00,692-W0078-A0,18-3370,692-W0078-02-00,688-44352-03,688-44322-00,688-44315-A0,688-44323-00,688-44324-A0,688-44316-A0,93210-46044,90119-08192,90119-08196,90280-04M04

Specification

Type:Sea Water Pump Impeller Repair Kit
Material：Rubber+Stainless Steel+Plastic

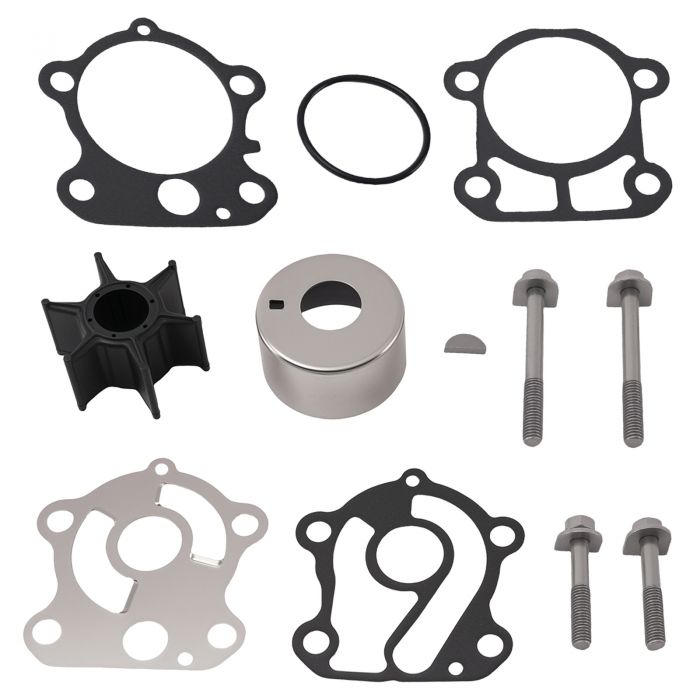

Package included

1*Water Pump Impeller 688-44352-03
1*Gasket, Water Pump 688-44315-A0-00
1*Gasket, Water Pump 688-44316-A0-00
1*Key, Impeller 90280-04M04-00
1*O-Ring 93210-46044-00
1*Gasket, Water Pump 688-44324-A0-00
4*Bolt 97395-08050-00
1*Cup, Insert 688-44322-00-00
1*Plate, Wear 688-44323-00-00
