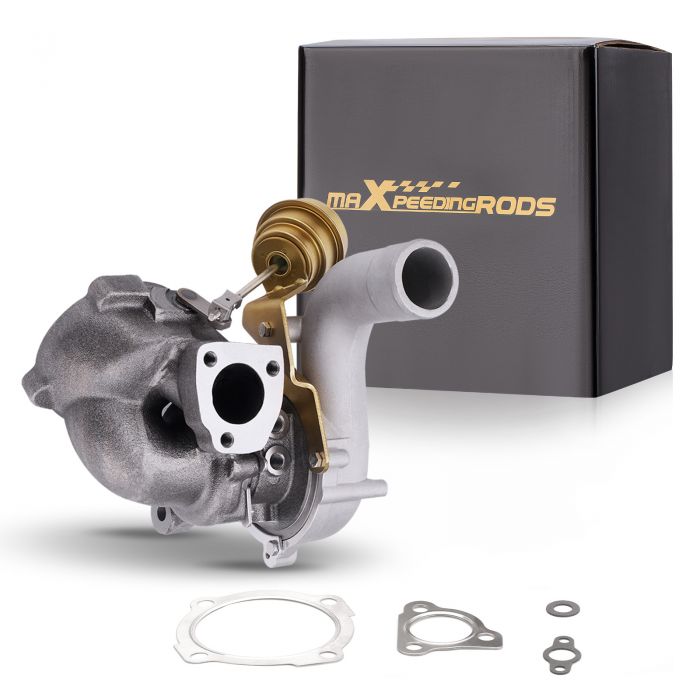

k04-001 turbocharger compatible for Audi TT 1.8TVW compatible for Golf 1.8L K04 turbo with gaskets
SKU
3002914152
<p><strong>Application </strong></p>
<p>K04 model:</p><p>for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009</p><p>for Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009 </p><p>for Volkswagen BEETLE, Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009</p><p><br></p><p>Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04 compressor inlet is bigger than K03 model）: </p><p>1. For Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003</p><p>2. For Audi A3 with AUQ, ARZ, APP engine 132 KW, 180 PS 1996-2003 </p><p>3. For Audi TT with AUQ engine 132 KW, 180 PS 1998-2006</p><p>4. For Seat Leon with AJQ; APP; ARY; AUQ engine 132 KW, 180 PS 1998-2006</p><p>5. For Skoda Octavia AUQ engine 132 KW, 180 PS 2001–2005</p><p>6. For Volkswagen Golf/Bora/Jetta with AUQ, ARZ Engine 2000-2009</p><p>7. For Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05</p><p><br></p><p>*IMPORTANT NOTICE:</p><p>1.This is an upgraded K04 turbo for K03-053 & K03 -052.Do not for K04-022.</p><p>2.K04 -001 turbo is different from K03-052 ＆ K03-053</p><p>（1）some modification are needed，compressor intake size is bigger than K03-052 or K03-053</p><p> K03-052 ＆K03-053 compressor intake size is 45mm</p><p> K04-001 compressor intake size is 48.7mm</p><p>（2）Silicone hose may need for K04-001 compressor intake connection.</p><p>3.Make sure your OE number is correct for K04-001,K03-052 and K03-053</p>
<p> </p><p><b>Turbo Part Number & OEM Number</b></p><p>K04-001 part number/OE number:</p><p>53049500001,5304-950-0001, 5304 950 0001, </p><p>53049887501,5304-988-7501, 5304 988 7501,</p><p>06A-145-705HP, 06A145705HP,</p><p><br></p><p>*IMPORTANT NOTICE:</p><p>This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)</p><p>K03-052 Part/OE number:</p><p>53039700052,5303 970 0052,5303-970-0052,</p><p>53039880052,5303 988 0052,5303-988-0052,</p><p>53039880094,5303 988 0094,5303-988-0094,</p><p>06A145704T, 06A145713D, 06A145713DX, 06A145713DV, 06A145713F, 06A145713FX,8299299564, 8299299564,</p><p><br></p><p>K03-053 Part/OE number:</p><p>53039880053,5303 970 0053,5303-970-0053,</p><p>53039880058,5303 988 0058,5303-988-0058,</p><p>06A145681H,06A145702P,06A145704S,</p><p>06A145713B,06A145713L,06A145713M,</p><p><br></p>
<p><span><span><span><strong>IMPORTANT NOTICE:</strong></span></span></span><br>
<span><span><span>1. This is an upgraded K04 turbo for K03-053 & K03 -052.<br>
2. K04 -001 turbo is different from K03-052 ＆ K03-053<br>
1) some modification are needed，compressor intake size is bigger than K03-052 or K03-053<br>
K03-052 ＆K03-053 compressor intake size is 45mm<br>
K04-001 compressor intake size is 48.7mm<br>
2) Silicone hose may need for K04-001 compressor intake connection.<br>
3. Make sure your OE number is correct for K04-001,K03-051 and K03-053</span></span></span></p>
<p> </p>
<p><span><span><span><strong>Specification</strong></span></span></span></p>
<p>Turbo Model: K04-001</p><p>Engine Model: 1.8L-5V </p><p>Engine Code: AJQ, APP, AUM, AUQ, ARY</p><p>Cooling Type: Water & Oil Cooled</p><p>Bearing Type: Journal Bearing / Floating Bearing</p><p>Thrust bearings: 270 Degrees</p><p>Hosepower: 162KW/220PS</p><p>Turbo Type: Individual</p><p>Universal Fitment: No</p><p><a href="Finish:Matte">Finish:Matte</a></p><p><span style="color: rgb(24, 28, 31); font-family: "PingFang SC", sans-serif; font-size: 14px; white-space-collapse: preserve;">Compress Inlet Size(Air intake): 19.17 inch (48.7mm)
Compressor Outlet Size: 20.47 inch (52mm)</span></p><p>Condition: 100% Brand New</p><p>Accessories: You will receive the parts exactly as shown in the picture above.</p><p>Package Size:30 x 27 x 24cm</p><p>Package Weight: 6900g</p><p>
</p>
<p><span><span><span><strong>Features</strong></span></span></span></p>
<p>* Product Material</p><p>1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃</p><p>2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃</p><p>3. Compressor housing：ZL104 aluminum with lightweight </p><p>4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance</p><p><br></p><p>* Product Performance</p><p>1. OEM-quality and size with little modification</p><p>2. Rich experience in turbo production and own factory</p><p>3. High-Speed oil seal ring and Precision clearance</p><p><br></p><p>* Technology Advantage: </p><p>1. 100% balancing Test by TURBOTECHNICS VSR3</p><p>2. G3-min-Flow VNT Turbo testing</p><p>3. Advanced Actuator Tester/Programmer</p>
<p><span><span> </span></span></p>
<p><span><span><span><strong>Notice</strong></span></span></span></p>
<p>* Please confirm your original turbo PART NUMBER before Purchasing</p><p>* Professional installation is highly recommended </p><p>* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!</p>
