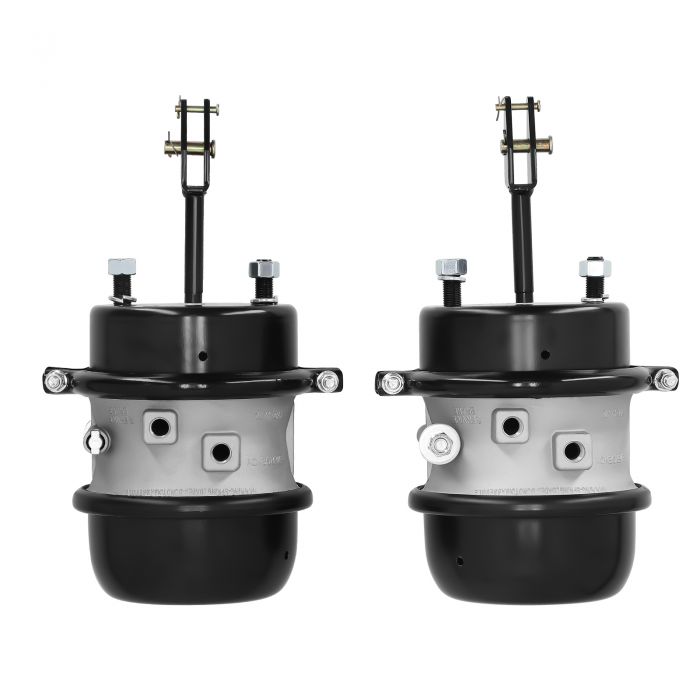

Long Stroke Air Brake Chamber 3030 3 76mm Replace For Bendix BTS-3030LS-WCR

SKU

300200007304

Skip to the beginning of the images gallery

Application

For Haldex: GC3030LCW
For Bendix: NT3030ELS-WC
compatible for Freightliner: HDX1373030215
For Others: BTS-3030LS-WCR, GTA-3030LS-WCR

OE/Part number

GC3030LCW,
NT3030ELS-WC,
HDX1373030215,
BTS-3030LS-WCR,
GTA-3030LS-WCR,
NT3030ELSWC,
BTS3030LSWCR,
GTA3030LSWCR

Specification

Condition : New
Actuator Type Size : 3030
Stroke Type : Long
Available Stroke : 3", 76mm
Length from mounting bracket to the end of Spring Housing : 9-7/8", 251mm
Length of Piggyback : 7-3/8", 187mm
Dimension at rolled Spring Housing flange : 8-5/16", 211mm
Dimension at Service Clampband : 10-3/16", 259mm
Pushrod Length from the face of Service Housing : 1"
Distance to Clevis Pin centerline from the face of Service Housing : 2-1/4"
Weight : 21.9 lbs. , 9.9 kg.
Packaging Type: Box
Fitment Type: Direct Replacement

Feature

- High-Quality Torque Long Stroke Air Brake Chamber Type 30/30 Welded Clevis
- Package includes 2 Long Stroke Air Brake Chambers
- Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses
- Superior Power Spring Technology; Advanced powder coating process;
- Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications

Note

●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
