Low-Flow Titanium Heater Replacement 4kw w/Sensor For Hot Spring 26-C3160-2S

SKU

300800000002

Skip to the beginning of the images gallery

Application

for many 1995 to current Watkins No-Fault, Hot Springs, Tiger River, Hot Spot, Caldera and Laing tri-bend hot tubs spa models.
for Watkins Heater Cross Reference MATRIX 26-C3160-2S, C3160-2S, 73039, 73791, 76228, C3564-2, 25-250-1022. Also suitable for old trumpet-style Laing Infinity 6758, IHH-4000-NHCW and IHH-4000-NHCW-6758 Triple Bend heater (confirm the number on the heater data label correctly matched).

OE/Part number

Directly replace for Hot Spring 26-C3160-2S, C3160-2S, 73791, 76228, Replace for Watkins No-Fault older model Old Trumpet-Style Laing Infinity 6758, IHH-4000-NHCW and IHH-4000-NHCW-6758 Triple Bend heater (Obsolete).

Specification

Wattage: 4KW 240V,1.0KW 120V
Element Material: Titanium
Amperage:16.6A 240V,8.8A 120V
Required Flow Rate: 8 GPM
Voltage: 120V or 240V
1 Phase 50/60 Hz
Replace Number 26-C3160-2S

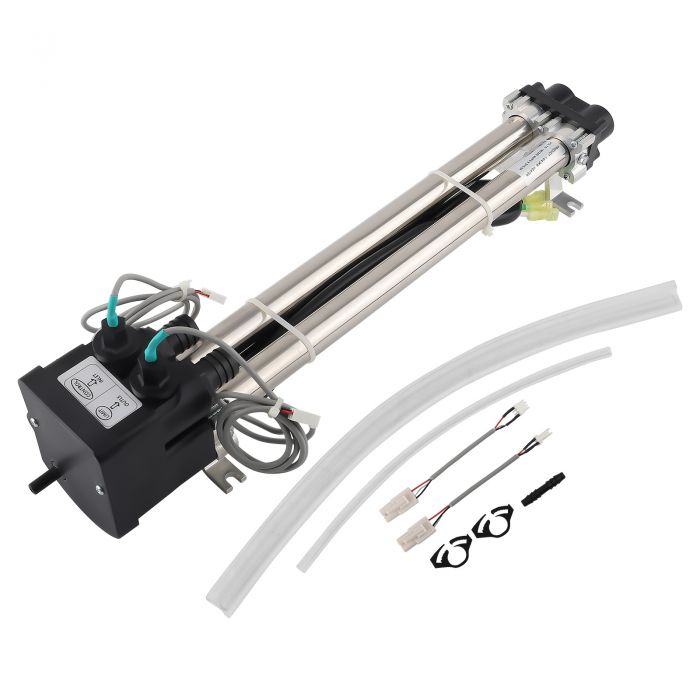

Package included

1x Low-Flow Titanium Heater.
2x Sensors with new style 4-pin sensor plugs (2002+),
1x auto-reset high limit,
1x18" of 1" 0.D, Tubing,
1x 12" of 3/8" 0.D. Tubing,
1x Barb Coupling 1/4"x 1/4"
(Showing as the picture)

Feature

* High quality Metal and constructed for Anti-rust and Anti-corrosion.
* Fully tested under extreme condition for heat resistance and long-life use.
* Stable performance.
*No Modifications Required. Includes a Bleed Tube Extension Kit with coupling & clamps for ease of installation on some spa models.

Note

*No Instruction Included.
