maXpeedingrods 2in Leveling Lift Kit w/ StrutsShocks compatible for Ford F150 4WD 09-13

SKU

3002923082

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

2009-2013 compatible for Ford F150 4WD
NOTE： Does NOT fit Raptor models.

Specification

type: suspension leveling kit
lift height: 2" front, 1" rear
Material: High Tensile Strength Carbon Steel
Finish: Powder coated
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 32mm/1.25"
Outer cylinder diameter: F&R 50mm/1.95"
Travel: F: R: 290mm/11.41"
extended length: F: 620mm/ 24.4"
R: 765mm/30.11"
collapsed length:F: 505mm/ 19.88"
R: 475mm/18.7"
Nitrogen charged：yes
spring length: 420mm/16.53"
spring rate: 9.5kg/mm (475.97lbs/in)
Recommended Tire Size: 35x12.50
Recommended Wheel Backspacing: Factory

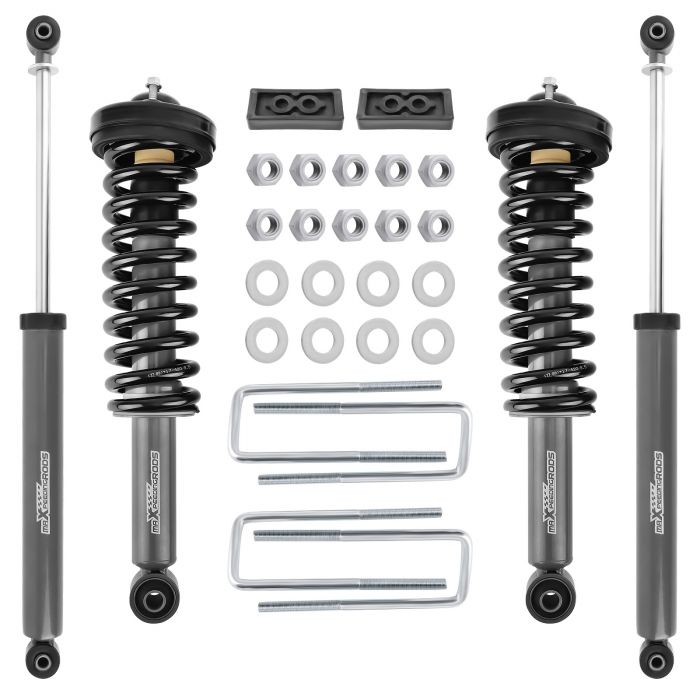

Package included

2xFront Lifted Struts
2x Rear shocks
2x rear 1" lift blocks
4x U-bolts
Hardware

Feature

Easy bolt-on installation
Maintains factory ride quality
Increased ground clearance
Levels the front with the rear of the vehicle
No need to disassemble your struts to install
