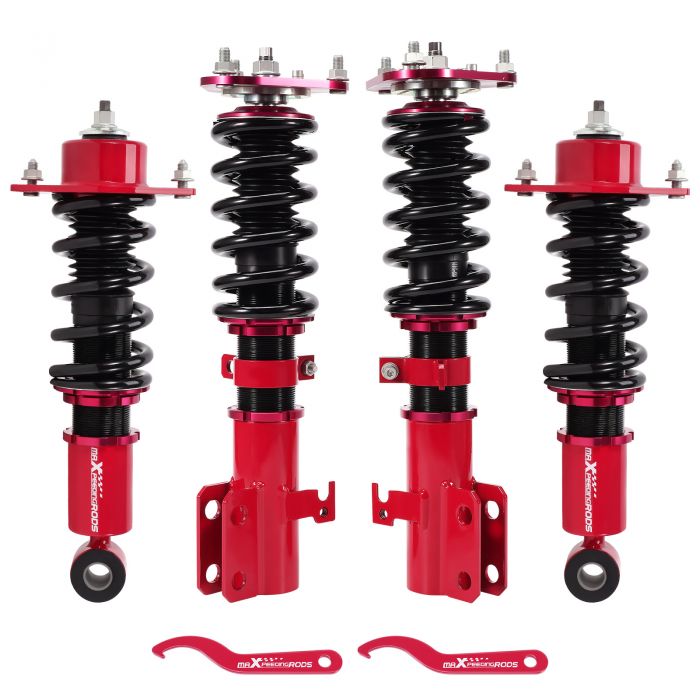

MaXpeedingrods Coilovers Shocks Suspension Kit compatible for Toyota Corolla 2003-2008

Introduction

Maxpeedingrods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible for Toyota Corolla 9th Gen. (E130) 2003-2008 USA
compatible for Toyota Corolla 9th Gen (_E12_) (01/2001-12/2007) other markets
compatible for Toyota Matrix XRS (E130) 2003-2008

Specification

Front top mounts: pillow ball with camber plate
Rear top mounts: standard rubber
Damping adjustable: Not available
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 12 kg/mm (672 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 190 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

Package included

Package included：
2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners

Dimension

Package size : 64*50*20 cm
Weight: 26250 g

Feature

1. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
2. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
3.CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
5. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.
6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
