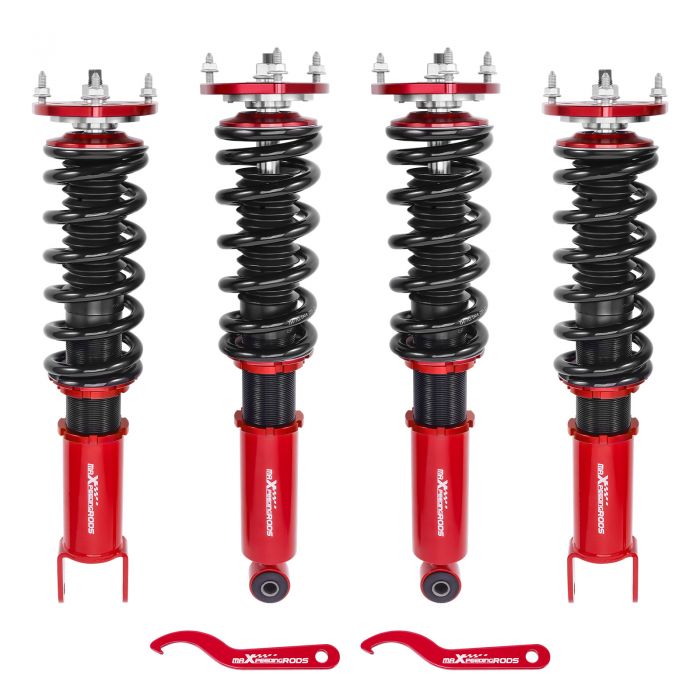

MaXpeedingrods Street Coilovers Lowering Kit compatible for Infiniti Q50 RWD 2014-23

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible for Infiniti Q50 (V37) RWD 2014-2023 Front Lower Mount Eyelet, excluding 2.0T

Specification

Front and rear top mount: pillow ball
Damping adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Camber adjustable: Not available
Spring rate Front: 12 kg/mm(672 lbs/in)
Spring rate Rear: 8 kg/mm(448 lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 70.5mm
Spring length Front: 220 mm
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

Package included

Package included：
2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench

Dimension

Package size : 70*50*20 cm
Weight: 29500 g

Feature

1. Enhanced Handling and Stability:
These springs effectively lower your vehicle's center of gravity, improving cornering stability and reducing body roll for a more responsive and controlled driving experience.

2. Precision Engineering for Superior Functionality:
Each spring is expertly designed to match your vehicle's specific weight and dynamics, ensuring optimal handling and comfort.

3. High-Quality Materials:
Made from SAE 9254 cold-wound steel, providing long-lasting durability. It has high strength and good elasticity, maintaining stable mechanical properties in high-temperature environments.

4. Superior Corrosion Resistance:
Treated with an advanced anti-corrosion coating, significantly extended lifespan, making them reliable for any driving environment. This coating protects against moisture, salt, and chemicals, ensuring consistent durability over time.

5. Compatibility and Easy Installation:
These springs are designed for direct installation and are compatible with OEM or aftermarket shocks, allowing for a hassle-free upgrade with minimal modifications.

6. Rigorous Testing:
Undergone extensive testing, including 200,000-cycle fatigue test and 720-hour salt spray test. These tests ensure exceptional durability and corrosion resistance, allowing them to perform reliably under repeated stress and in harsh environments.

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-23 months will keep it smooth and clean, which helps to extend the lifetime.
