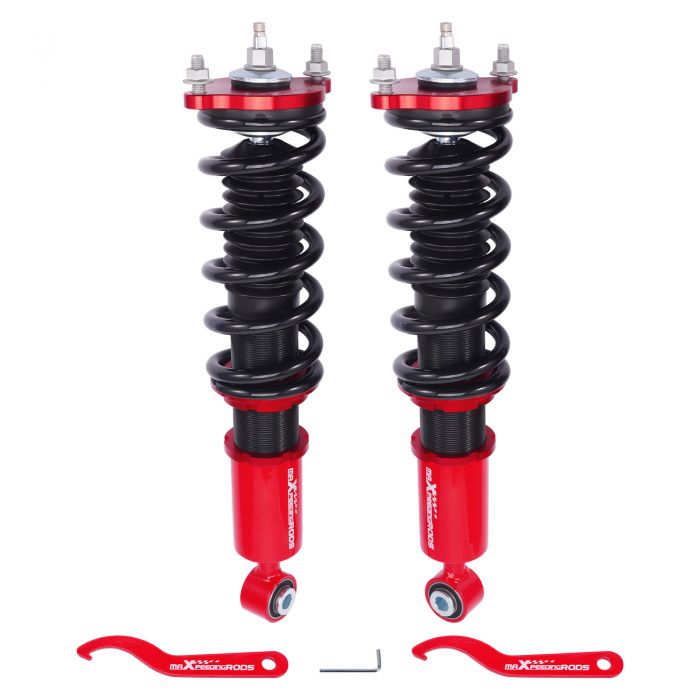

MaXpeedingrods Rear Coilovers compatible for Subaru Legacy Outback BE/BH 2000-2004

SKU

300200014950

Skip to the beginning of the images gallery

Introduction

maXpeedingrods-B3 is based on maXpeedingrods-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Application

Compatible for Subaru Legacy Outback B4 BEE/BE5 1998.12-2003.05
compatible for Subaru Legacy Outback TOURING WAGON BHE 1998.06-2003.05
compatible for Subaru Legacy Outback TOURING WAGON BHE/BH5 1998.06-2003.05

Specification

Rear top mounts: standard rubber
Damping adjustable: Available, 24 levels of rebound damping force
Height: Keep OE height
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

Package included

Package included：
2x Rear coil-overs
2x C spanners
1x Allen wrench

Dimension

Package size : 73*26*19 cm
Weight: 11400 g

Feature

1. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
2. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
3.CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
5. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.
6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
