MaXpeedingrods T6 Coilovers 24 Way Suspension Kit compatible for SCION XD 08-14 compatible for YARIS 07-11

Introduction

maXpeedingrods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.

Application

Compatible for TOYOTA YARIS 2007-2011 USA NCP91L,NCP93L
compatible for TOYOTA SCION XD 2008-2010 ZCP110L
compatible for TOYOTA PRIUS C 2012-2019 NHP10
compatible for TOYOTA AQUA 2011.12-2021.06 JPN NHP10
compatible for TOYOTA AQUA G'S 2013.12-2017.06JPN NHP10

Specification

Front top mount structure: OE top mount required
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 6 kg/mm(336 lbs/in)
Spring Rate Rear: 5 kg/mm(280 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 66-81 mm
Spring length Front: 180 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Color: Black body with blue spring

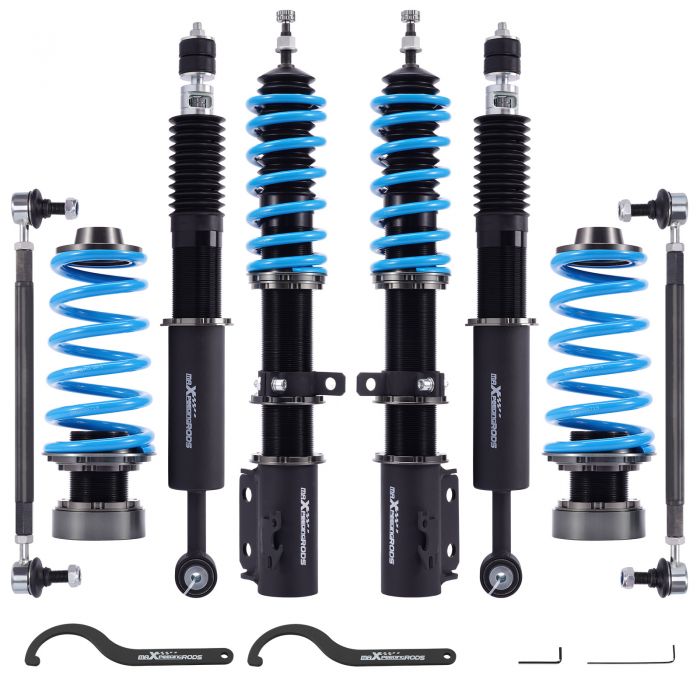

Package included

Package included：
2x Front coil-overs
2x Rear coil-overs
2 x Sway bar links
2x Allen wrench
2x C spanners
1x Sticker

Dimension

Package size: 70*50*20 cm
Weight: 30800 g

Feature

1. Lowered height adjustment from 25-75mm which allows a lower center of gravity and also adds a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. With a better-damping setting, you will get better performance and comfort at the same time.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Anti-corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
12. Clean room assembled---maintain a higher level of accuracy and reliability.
13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

Note
