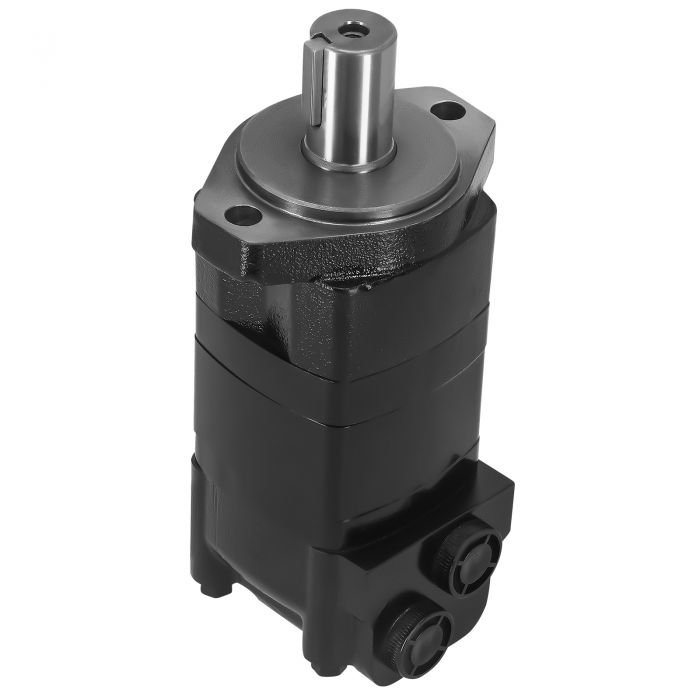

New Aftermarket For Char-Lynn 104-1027-006 / Eaton 104-1027 Motor

Application

For Eaton Char-Lynn 2000 Series

OE/Part number

104-1027-006, 1041027006, 104-1027, 1041027

Specification

Type：Hydraulic Motor
Material: Cast Iron
Color: Black
Series: 2000 Series
Port Type: .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports
Displacement: 244.3 CM3/R [14.91 in³/r]
Output Shaft: 31.75 [1.250] DIA. Straight Shaft with .375-16UNC-2B Thread in End, 7.938 [.3125] SQ X 31.75 [1.250] Straight Key
Output Shaft Size: 1-1/4 in Straight - Straight Key
compatible for Case drain: 7/16"-20 UNF-2B O-ring port size 4
Mounting Type: Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes on 106.4 [4.19] DIA. Bolt Circle. SAE A

Package included

1*Hydraulic Motor
（Showing as the picture）

Feature

1.Stable characteristics, high reliability.
2.Made of high-strength iron housing, protecting the shaft inside very well, solid and durable, long service time.

Note

1. Professional installation of the product is highly recommended.
2. Please double confirm the compatibility as well as the OEM number before purchasing.
