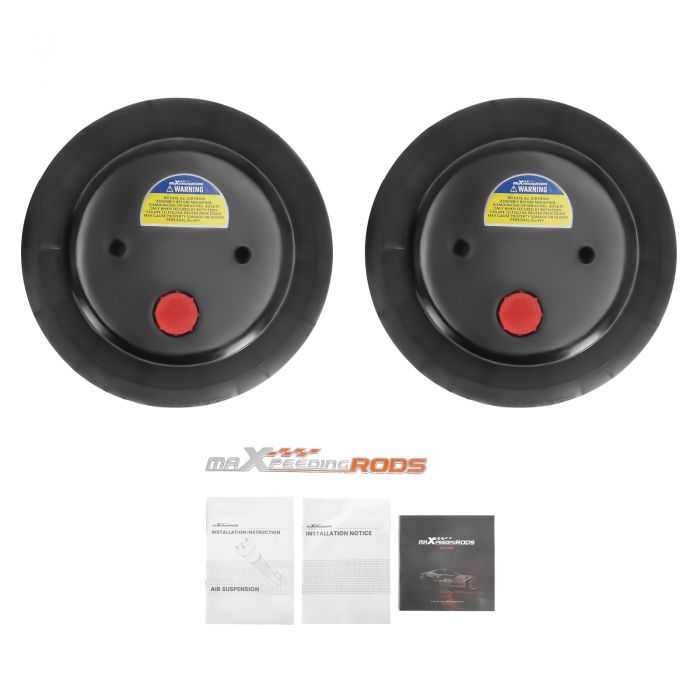

Pair Triple Bellow 2600 Bags 1/2"npt Single Port Air Ride Springs Bag Suspension

Application

For most bus/truck&trailer, compatible for Mini Trucks, Light Duty, and Subframe Vehicles

OE/Part number

Stroke/Closed:220 mm
Max height:330 mm
Min height:110 mm
Design Height:250 mm/9.8"
Top plate diameter:131 mm
Airport size: 1/2-14NPT Single Port
All mounting holes size:3/8-16UNC
Independent Test Pressure: at least 290psi
Recommended working range: 0psi - 170psi
Air spring bag capacity：2600LBS/Side

Specification

Condition: New
Part Type: Air Suspension Spring
Placement on Vehicle: Rear,Front
Quantity: 2 pieces (for rear, front, left, right)
Length, width and height (cm): 40*28*22 cm
Weight: 6.1 Kg

Feature

PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve minimizes noise.
Heavy-duty crimping rubber and connection compatible for seat withstand 2 MPa+ pressure, preventing detachment.
TPV dust cover: better flexibility and lifespan than TPE.

RIGOROUS TESTING
100% air tightness tested.
Endurance tested over 5 million cycles.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict standards and ISO 9001 compliant.
Precise OE fit and performance.
CNC machined components.

PERFORMANCE & COMFORT
Restores ride height and enhances comfort.
High compressive strength and excellent sound insulation ensure driving comfort and safety.
Efficient heat dissipation ensures durability.
Easy to install, with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
