Power Steering Rack and Pinion Assembly compatible for Acura MDX 2007 2008-2013 53601STXA01

SKU

300200007414

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Acura MDX 3.7L 2007-2013

OE/Part number

26-2732,262732,53010STXA01,
53601STXA01,53601STXA02,53601STXA025

Specification

Condition：New
Casting Material： Aluminum
Distance Between Mounting Holes (IN) ：3.94
Distance Between Mounting Holes (MM)：100.03
Hose Port Type：Compatible for Seat
Input Shaft Diameter (IN)：0.75
Input Shaft Diameter (MM)：19
Input Shaft Length (IN)：1.81
Input Shaft Length (MM) ：46.05
Number of Mounting Holes：2
Pressure Port Thread Size：M14 x 1.5
Rack Length (IN)：45.44
Rack Length (MM)：1154.13
Return Port Thread Size：M16 x 1.5
Steering Rack Color：Black
Thread Length (IN) ：1.78
Thread Length (MM)：45.21
Tie Rod Ends Included：Yes
Total Turns Lock To Lock：3.25

Package included

1* Power Steering Rack

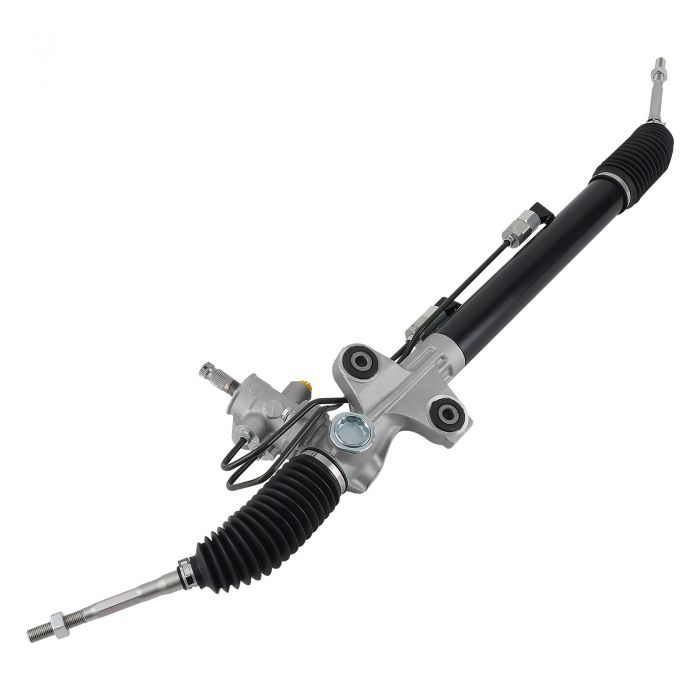

As Picture Shown

Feature

1.Durable Material: This product is made of high-quality aluminum and iron, which is firm and reliable. These metal materials make it have excellent corrosion resistance and can prolong the item's service life.

2.Easy Steering: The steering rack allows you to steer easily and make your driving more smooth and more convenient.

Note

Note: with Hydraulic Power; Includes Inner Tie Rods
Note-2: In-Line Filter available
