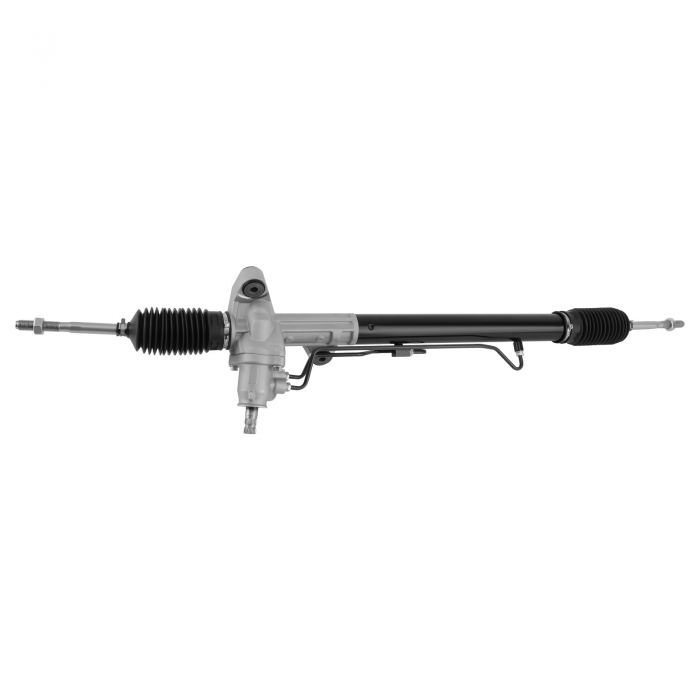

Power Steering Rack and Pinion Assembly compatible for Honda CR-V 1997 1998 1999 2000 2001

SKU

300200021890

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Application

Compatible for Honda CR-V 2.0L I4 1997-2001

OE/Part number

26-1776, 06536S10506RM, 18000810-101, 18000810-102, 18000810-103, 244-0108, 53601S10A01
53601-S10-A01, 53601S10A02, 53601-S10-A02, 53601S10A03, 53601-S10-A03, 53601S10G02, 53601-S10-G02,6536S10506RM , 18000810-101 , 18000810-102

Specification

Distance Between Mounting Holes (IN): 7.4"
Input Shaft Diameter (IN): 0.66"
Input Shaft Length (IN): 2.83"
Number of Mounting Holes: 2
Rack Length (IN): 41.7"
Thread Length (IN): 3.14"
Return Port Thread Size: M14*1.5
Pressure Port Thread Size: M16*1.5
Total Turns Lock To Lock (MM): 3.16

Note

* Please confirm your original part number or oem numbr can matche up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* For whatever we can help,please feel free to contact us.
