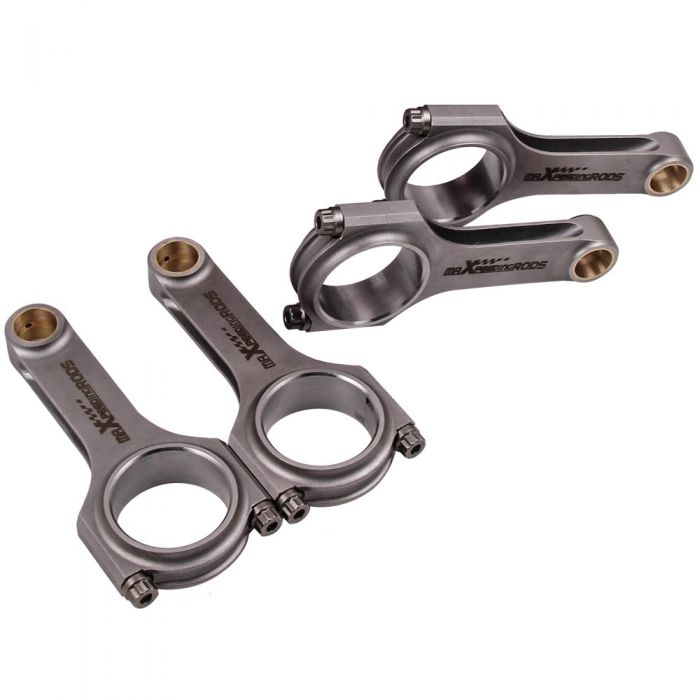

Connecting Rod Conrod Bielle Con Rod compatible for Mitsubishi 4G93 GSR 1.8L ARP 2000 bolts

Application

Compatible for Mitsubishi 4G93 GSR

Specification

<div><p>Quantity: 4 Pieces a set</p><p>Bolts: Including 8pcs 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)</p><p>Material: Forged 4340 aircraft chrome moly quality steel for racing</p><p>Weight Tolerance: Balanced to +/- 1 gram in set</p><p>HP Rating: Around 600-800HP</p></div>

Dimensions

<div><p>Center to center length: 133.5mm</p><p>Big end diameter:48mm</p><p>Small end diameter: 21mm (late model)</p><p>Big end width: 21.8mm</p><p>Small end width: 21.8mm</p><p>Note: 19mm pin (early model) is also available, contact us please!</p></div>

Feature

<div><p>- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing</p><p>- Designed and processed by CNC machine.</p><p>- All big and small ends are finished with SUNNEN honing machine</p><p>- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk</p><p>- 100% X-rayed, sonic tested and magnafluxed</p><p>- Multi-stage heat treated</p><p>- Shot peened to relieve stress</p><p>- Come with the bronzed bushing suitable for the floating piston pin</p></div>

Note

<div><p>Professional installation is highly recommended (No Instruction Included)</p><p>Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs. </p><p>Learn more about <a href="https://au.maxpeedingrods.com/custom_rods.html">CUSTOM SERVICE</a></p></div>
