Rear Disc Brake Conversion Kit compatible for GM 1012 Bolt with Brake Calipers

SKU

300200008376

Skip to the beginning of the images gallery

Application

This kit will fit 10 & 12 Bolt rear ends from:

Compatible for Buick Skylark 1964-77
compatible for Chevy Chevelle 1964-73
compatible for Chevy Nova/Compatible for Chevy II 1964-79
compatible for Chevy El Camino 1964-77
compatible for Camaro 1967-69
compatible for Chevy Monte Carlo 1970-77
compatible for Oldsmobile 442 1964-71
compatible for Oldsmobile Cutlass 1964-77
compatible for Pontiac GTO 1964-73
compatible for Pontiac LeMans 1964-77
compatible for Pontiac Tempest 1964-70

OE/Part number

91031919

Specification

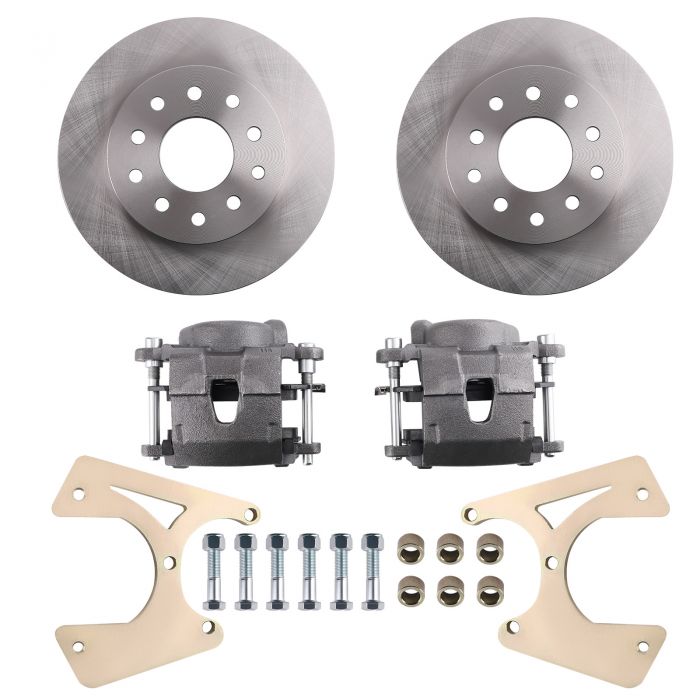

Includes rotors, calipers, pads, hardware, and caliper brackets.

The housing flange must have:
3-1/8" center-to-center distance for the top two bolt holes
2-11/16" center-to-center distance for the bottom two bolt holes
2-7/16" distance from the center of the top bolt to the center of the bottom bolt

Note

Note: This disc brake kit does NOT fit all 10 & 12 bolt rear axles. It does NOT fit full size car (Biscayne, Bel Air, Impala) or pickup rear axles.
