Rear Suspension Trailing Arm New Bushing Removal Tool compatible for Ford Focus Kuga compatible for Mazda

SKU

3002920789

Skip to the beginning of the images gallery

Application

Compatible for Ford Focus MK1 MKII 1998-2007
compatible for Ford Kuga 2008
compatible for Ford C-Max 2007
compatible for Mazda 3 Sedan, Hatchback 2003-2008
compatible for Mazda 5 CR, CW, MPV 2005
For V50 2004-2012
For S40 MK Sedan 2003-2012

Specification

Function: Specifically designed for disassembling and installing rear trailing arm bushings, allowing on-site usage without removing the arm from the vehicle.
Material: The control arm bushing removal tool is made of selected carbon steel. The greater the hardness, the higher the strength, ensuring stable structure, and with surface corrosion-resistant treatment, it becomes more durable, extending its service life.

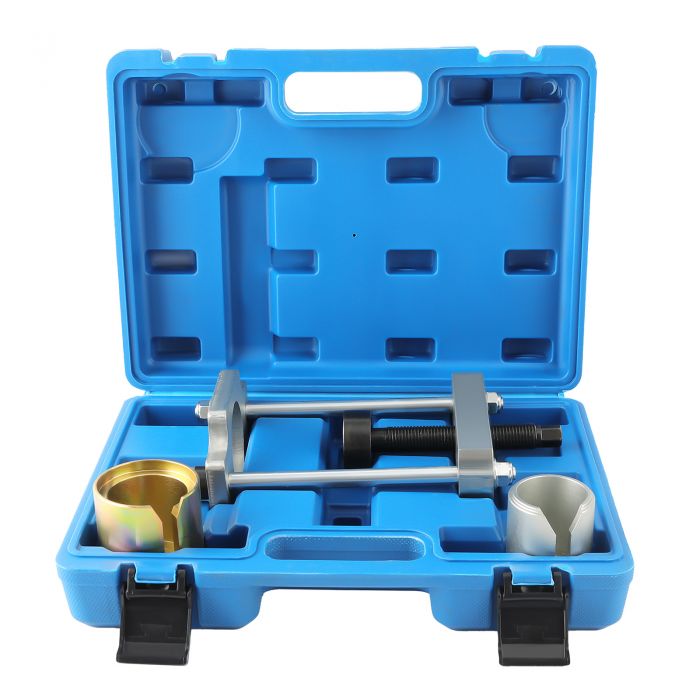

Convenient to use and store: Each tool is neatly organized and securely fastened inside the toolbox, ensuring protection during transportation and effortless access and storage for work.

Dimension

Principal axis:
Thread: 22*2.5mm/0.9*0.1in;
Total length: 170.0mm/6.7in;
Hex external drive SW: 16mm/0.6in.
Squeeze casing:
Total height: 70.7mm/2.8in;
Outer diameter: 58.3mm/2.3in;
Inner diameter: 46.8mm / 2.1in;
Internal height: 61.0mm/2.4in;
Cross slot: width: 10.0mm / 0.4in, height: 60.0 mm / 2.4in
Press-in casing pipe:
Total height: 74.0mm/2.9 in;
Outer diameter: 71.6mm/2.8in;
Inner diameter: 53.8mm/2.1in;
Inner height: 62.0mm/2.4in;
Cross slot: width: 10.0mm/0.4in,
height: 53.0mm/2.1in.

Note

Due to manual measurement, variations in lighting, and differences in displays, slight size and color discrepancies may occur. Thank you for your understanding.
