S410SX Upgrade Billet Turbo compatible for Caterpillar CAT 3406 3406B 3406C C15 C16 0R6957

SKU

3002920786

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Applications:

Compatible for Caterpillar 3406B 3406C 3406 C15 C16 Turbocharger

Part Number & OEM Number:

14969880000, 0R5733, 0R6689, 0R6170, 0R6957,

0R6051, 0R6053, 0R6960, 0R6558, 0R6689

Specification:

Engine Code: C15 & C16
Turbo Model: S410SX
Cooling Type: Oil Cooling
Fuel Type: Diesel

Compressor Wheel: 78mm
Turbine Wheel: 96/88mm
Turbine Housing: T6 twin-scroll

Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 360 Degrees
Universal Fitment: No
Finish: Matte
Actuator Type: None
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size: 46*43*39.5 cm
Package Weight: 28 kg

Features:

* Product Material:
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

* Product Features:
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

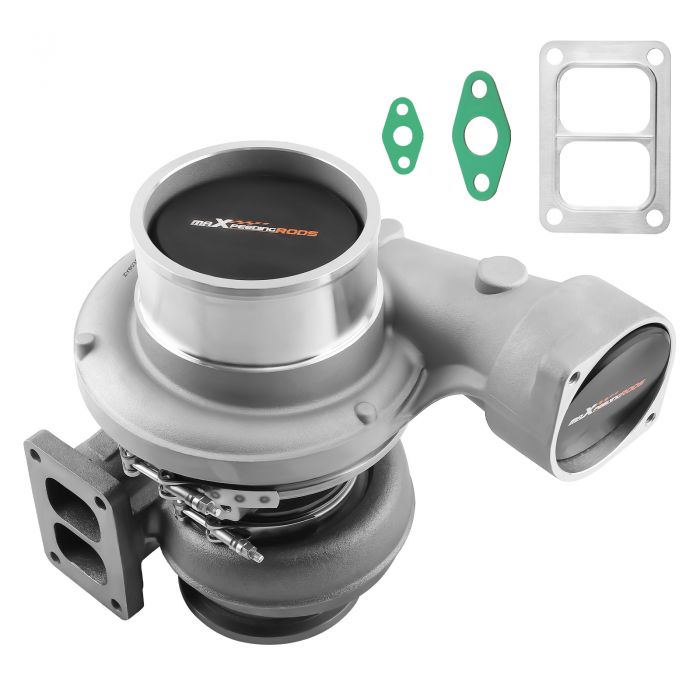

Package included:

1x Turbocharger
2x Oil Port Gaskets
1x Gasket
1x Manual
1x Brochure
1x Sticker

Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
