Short Extreme Duty Actuator 2-1/4 Stroke 12V 101XDS Actuator Trim Tab 15057-001

SKU

300200006333

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

OE/Part number

15057-001,15057001

Specification

Condition:Brand New
Material：Plastic
Voltage：12 volts
5/16" mounting hardware
6 foot cable

Package included

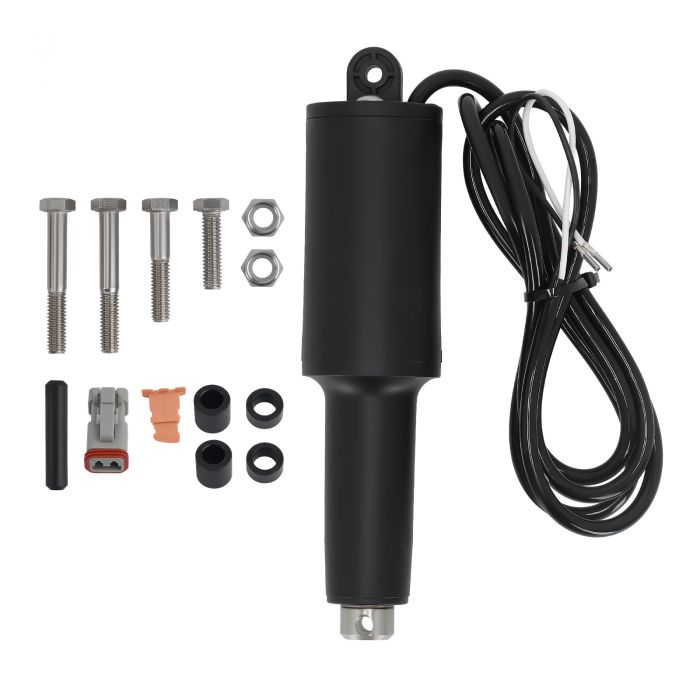

1* Short Extreme Duty Actuator
As Picture Shown

Feature

1.Product Features: Used with OEM specific kits and limited space applications; the shortest actuator manufactured with 2.25 stroke and overall length10 7/8 inches (tip to tip)

2.Fabulous Design: High impact glass fiber filled and the ultraviolet-resistant nylon material along with the 316 super buff stainless steel work together to reinforce thermoplastic housing; ball screw design facilitates free rotation on 12 ball bearings at both ends of its stroke and decrease friction making it more reliable and twice as efficient compared with typical hydraulics;

3.Extreme Duty Actuator: tough, high-torque actuator motor easily pushes 750 pounds: leads with waterproof "Plug & Play" Deutsch connectors to reduce the possibility of water intrusion.

4.High Performance: With stronger top cap and mounting clevis design, improved pressure-tight torx screws, integrated wiper seal at actuator base. molded-in brass thrust bearing design, thicker and stronger motor housing wall, improved O-Ring design for more consistent seal and maximum protection and the over-molded cable.

5.Technical Specification: Stroke: 2-1/4": Length overall: 10-7/8": Length pin to pin: 10-1/4": Diameter (upper housing): 2-1/2";5/16" mounting hardware;12 Volt; 6 feet cable.

Note

Please confirm the model number before purchase.
Installation instructions are not included.
Manual measurement, please allow 1-3mm error.
Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item.
Thanks For Your Understanding.
