T04E T3 Turbo Turbocharger Kit 400+HP Stage III Wastegate+ 27x7x2.5 Intercooler

* This is universal application turbo, so modification might be required for some vehicles.

Application

Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines

Turbo T04E Turbocharger

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet  Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width)
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/ Wastegate
Thrust Bearings: 270 Degrees
Hosepower: Up to 420 HP

27x7x2.5 2.5" Universal Intercooler

-Inlet/outlet size: 2.5"
-Core size: 21"x 7"x 2.5"
-Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)
-Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP
-Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi
-Material:  Aluminum alloy
-Core design: Tube & Fin

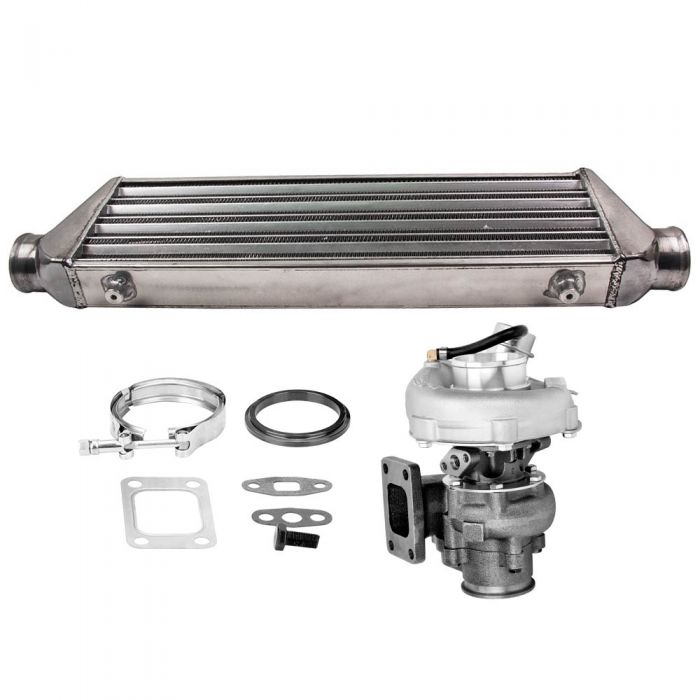

Package include

1x T04E V-Band Turbocharger
1x 27x7x2.5 2.5" Universal Intercooler


NOTE:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
