T04E T3/T4 A/R.63 57 Trim 400HP Stage III Turbo Charger + Oil Feed + Drain Line Kit
Notice: This product must be installed by a licensed mechanic and used in compliance with local modification regulations. Due to state emissions regulations, this product cannot be sold or shipped to customers in California (CA) or New York (NY).
Description
A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
Note:Please confirm that your car's displacement is between 1.5-2.5L .
Please check the size before purchasing and make sure that your car has enough space to install this turbo.
Specification
Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76
Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Bearing Type: Journal Bearing
Condition: 100% brand new

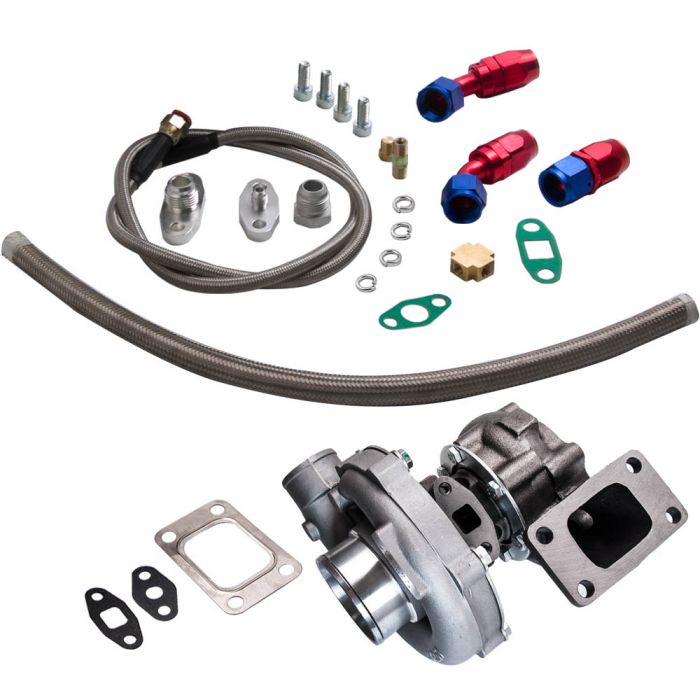

Accessories: You will get exactly as shown in the picture above
Warranty: one year warranty for any manufacturing defect
Boost pressures are 7psi(.5 Bar) to 18psi(1.24 Bar)
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External wastegate
Horse Power: Boost Horse Power up to 400+HP
Features
- Universal turbochargers.
- Oil cooling system can extend the life of the turbo.
- High temperature resistance.
- Turbine-driven forced induction device.
- Enhance engine power and reduce energy consumption.
Notice
- Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.
- This is universal application turbo, so modification might be required for some vehicles.
- Please check our store for other auto parts you may be interested in.
- No instruction included; Professional installation and alignment suggested.
- Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
- Make sure the oil drain line is lower than the turbo itself.
- Gasoline car must install a water cooling device to avoid overheating.
- Ensure exhaust outlet are well sealed by welding.
