T3 T4 T04E .57 A/R Universal Turbo Turbocharger for 2.5 to 3.5L 400HP and Oil Line
Notice: This product must be installed by a licensed mechanic and used in compliance with local modification regulations. Due to state emissions regulations, this product cannot be sold or shipped to customers in California (CA) or New York (NY).
Introduction
A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides universal turbochargers to enhance overall engine performance of your beloved car.
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine up to 400HP
Maximum 19PSI
Specification
Bearing: floating bearing
Turbo \
Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor:
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.57
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet :
Turbine exhaust inlet：45mm/87mm
Compressor outlet：42mm(inside diameter)、52mm(Outer diamet
Oil Line\
OiL Return Line: Length: 550mm || Inner Diameter: 21mm\
OiL Feed Line: Length: 1000mm || Inner Diameter: 14mm\

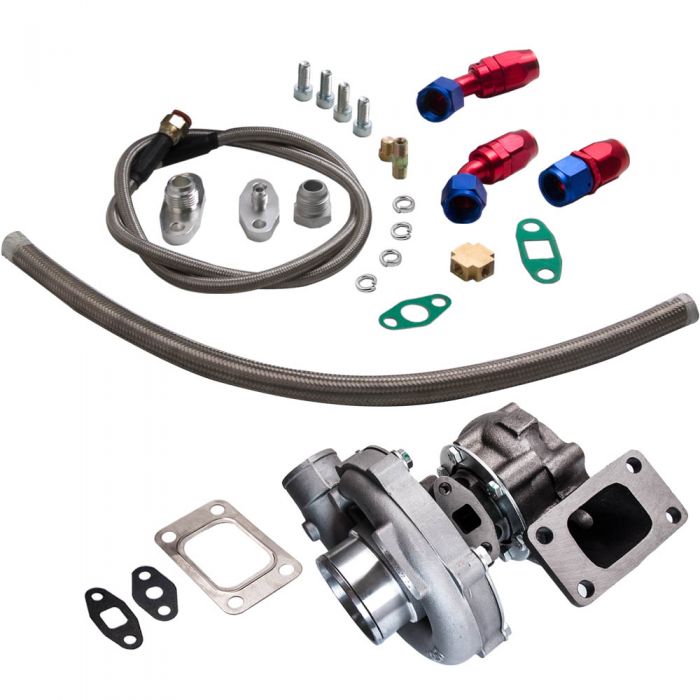

Accessories: You will get exactly as shown in the picture above\
Condition: 100% brand new\
Warranty: one year warranty for any manufacturing defect
Features
- High temperature resistance.\
- Turbine-driven forced induction device.\
- Enhance engine power and reduce energy consumption.\
- Improve fuel economy and reduce exhaust emissions.
Notice
- Please double confirm before ordering.\
- No instruction included; Professional installation and alignment suggested.\
- Please check our store for other auto parts you may be interested in.\
- For any needs please contact us.
- Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
- Make sure the oil drain line is lower than the turbo itself.
- Gasoline car must install a water cooling device to avoid overheating.
- Ensure exhaust outlet are well sealed by welding.
