Thermostatic Oil Filter Sandwich Plate M20x1.5 3/4-16UNF AN10 NPT Sensor Ports

Application

Universal--M20 x 1.5 and 3/4-16 UNF Threading Engine Blocks and Oil Filters Only

Specification

Material: Aluminum alloy
Color: Copper gold color
Design and style: 360° rotatable thermostat adapter
Center Adapter: M20 x 1.5 and 3/4 x 16 UNF Thread;
Inlet / Outlet Size: 10AN
Ports Size: 1/8 NPT Ports

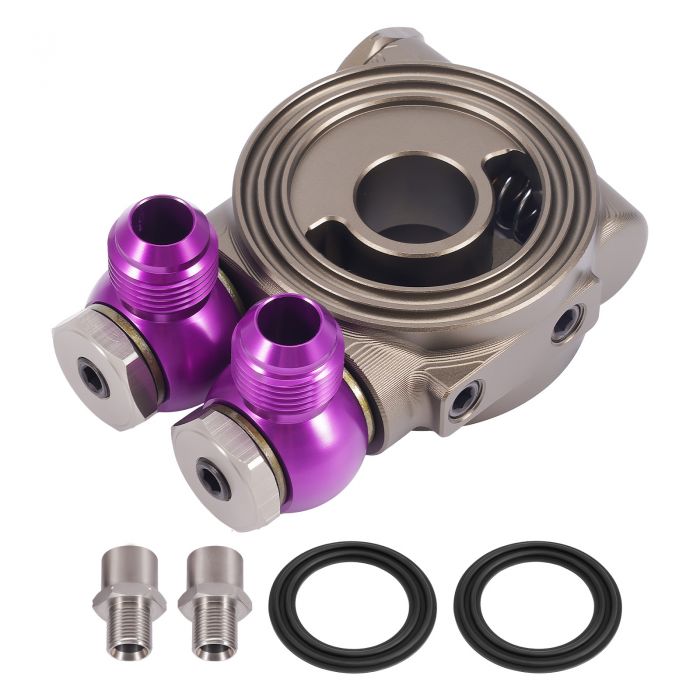

Package included

1* Oil Filter Sandwich Adapter
1* M20 x 1.5 Center Adapter
1* 3/4 x 16 UNF Center Adapter
2* AN10 Fitting
2* Sealing Washer

Feature

1. Optimized Oil Cooling Performance: This oil filter sandwich adapter is designed to improve the cooling efficiency of vehicle oil and is a must-have for those who require their engines to perform at their best. When the oil temperature is lower than 73 degrees Celsius, the valve remains closed. The oil directly enters the filter through the main oil channel, and then returns to the engine. This can avoid the heat loss caused by the radiator at low temperature and shorten the time of warming up the vehicle. When the temperature exceeds 73 degrees Celsius, the valve gradually opens, and part of the oil is shunted to the oil cooler for cooling, and then returned to the engine after mixing with the uncooled oil. Thereby it can reduce the overall oil temperature. When the oil temperature reaches 83 degrees Celsius, the valve is fully opened.
2.User-friendly Design: This oil filter sandwich adapter includes two fisheye fittings. They can achieve 360° rotation and ensure the oil filter sandwich adapter can be positioned at an optimal angle, regardless of the vehicle orientation. Its lightweight and compact design makes it easy to install without compromising space or performance. There are four 1/8 NPT ports for option to install oil temperature sensor or oil pressure sensor.
3. Ingenious Style: It is elaborate because of the CNC machined from aluminum with an anodized finish. Purple fittings with cooper gold oil filter sandwich adapter are matched and fashionable.
4. Durable and Reliable Construction: This oil filter sandwich adapter is made of aluminum alloy for durability. The durable construction ensures it can withstand the rigors of daily use and extreme driving conditions. It also includes two sealing washers of high quality which can prevent oil leakage, providing consistent performance and protection for your engine.

Note

1. The fittings of oil filter sandwich adapter are AN10 and they should be compatible with AN10 oil cooler hoses.
2. The center adapter mounting threads are M20x1.5 and 3/4-16UNF. Please confirm compatibility before installation.
