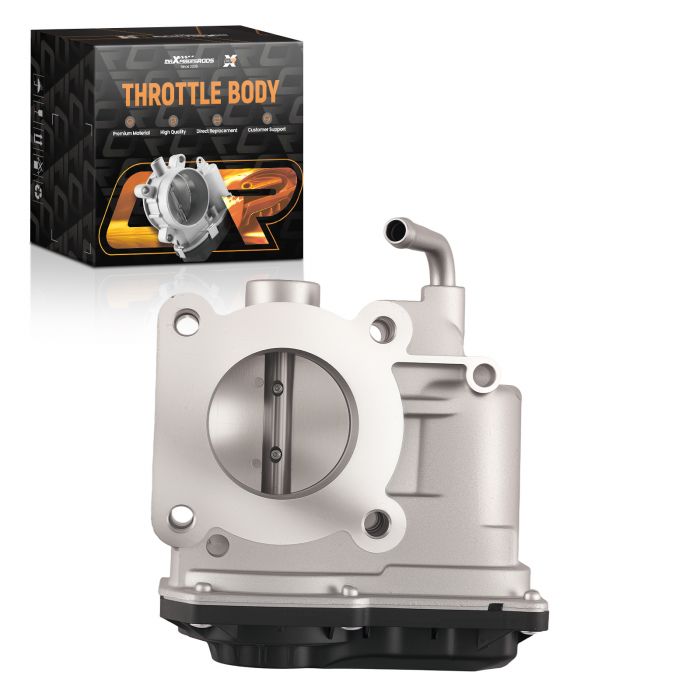

Throttle Body compatible for Toyota Yaris 1.5L 1497CC 2006 2007 2008 2009-2015 2203021030

SKU

300200011481

Skip to the beginning of the images gallery

Application

Compatible for Toyota Compatible for Yaris 1.5L 1497CC l4 GAS DOHC 2006-2015

Compatible for Toyota Compatible for Yaris 1.5L 1497CC 91Cu. In. l4 GAS DOHC 2010-2015

OE/Part number

22030-21030, 22030-0M010

2203021030, 220300M010

S20125, 67-8008, TB1116

Specification

Type：Throttle Body
Material：Aluminum
Bore Diameter：45mm
Housing Length (in)：5-9/16
Housing Width (in)：4-3/4
Main Port Inside Diameter(in)：1-15/16
Air Intake Port Maximum Diameter (in)：2-3/16
Throttle Plate Diameter (in)：1-3/4
Connector Quantity：1
Mount Hole Quantity：4
Terminal QTY：6

Package included

1*Throttle Body
As Picture Shown

Feature

1.100% quality assurance tested for faster response, lower cost and easier installation.
2.Energy saving and economy: reduce fuel consumption and improve efficiency

Note

Professional installation is highly recommended.
Please double confim the compatibility as well as the OEM number before purchasing.
