Timing Chain Kit w/ Water PumpMLS Head Gasket compatible for Ford Edge 3.5L 2007-2010
Application
Compatible for Ford Edge 3.5L 2007-2010
compatible for Ford Flex 3.5L 2009-2012
compatible for Ford Flex 3.5L 2010-2012
compatible for Ford Fusion 3.5L 2010-2012
compatible for Ford Taurus 3.5L 2008-2012
compatible for Ford Taurus 3.5L 2010-2012
compatible for Ford Taurus X 3.5L 2008-2009
compatible for Lincoln MKZ 3.5L 2007-2012
compatible for Mazda CX-9 3.5L 2007-2007
OE/Part number
BL3Z-6268-A, AT4Z-6268-A, AT4Z-6306-A, JL3Z-6L266-A
AT4Z-6B274-A, BL3Z-6K255-A, AT4Z-6K297-A, AT4Z-6K297-B
HS26437PT ES71320,HGS4198,AT4Z-6K297-D,AT4Z-6K254-A
Specification
Item Type: Head Gasket&Timing Chain Set
Condition: New
Placement on Vehicle: Front
Fitment Type: Direct Replacement
Material: Multiple Layers Steel (MLS) Head Gasket, Aluminum

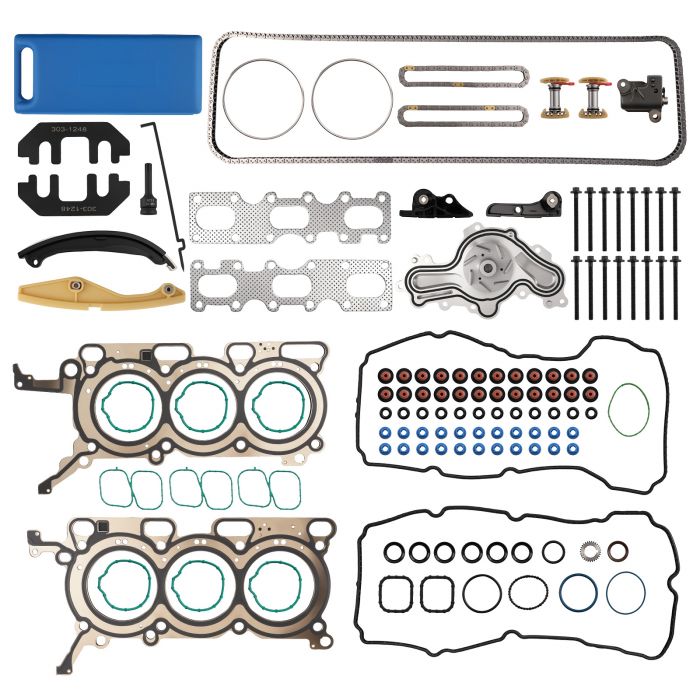

Package included
1 Primary Timing Chain (202 links)
2 Secondary Timing Chains (upper)
2 Cam Sprocket with bolts (25 teeth - exhaust)
1 Crank Sprocket (23 teeth)
1 Guide Rail (left - fixed - long)
1 Guide Rail (left - fixed - short)
1 Guide Rail (right - fixed - short)
1 Guide Rail (right - tensioner rail)
1 Primary Tensioner
1 Tensioner (upper - left)
1 Tensioner (upper - right)
1 Water Pump with gasket
1 Camshaft Holding Timing Alignment Holder Tool
Multiple Layers Steel (MLS) Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
16 Cylinder Head Bolts
Feature
1.High quality Metal and constructed for Anti-rust and Anti-corrosion.
2.Fully tested under extreme condition for stable performance and long time use.
3.High quality Metal and rubber material for high wear resistance and heat resistance.
4.Engineered and manufactured specifically for aftermarket repairs.
Note
1. Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
2. No Instruction Included, professional installation is highly recommended.
