Timing Tool Kit compatible for VW Chrysler Jeep 3.6L Pentastar Engine 2011-2019 10202A

SKU
300200007653

Register and log in to view the price.

Application

for 2011 to 2019 compatible for VW Chrysler Jeep Dodge Grand Cherokee Wrangler V6 3.6L pentastar engine
compatible for Chrysler /Grand Cherokee/Durango /Compatible for Ram 1500/Wrangler JL/Gladiator 3.6L WD WK JL DT engine

OE/Part number

10369A, 10200A, 10200A-1, 10200A-2, 10200A-3, 10202A, 10200A1, 10200A2, 10200A3, 10198A, 10369, 2025200090

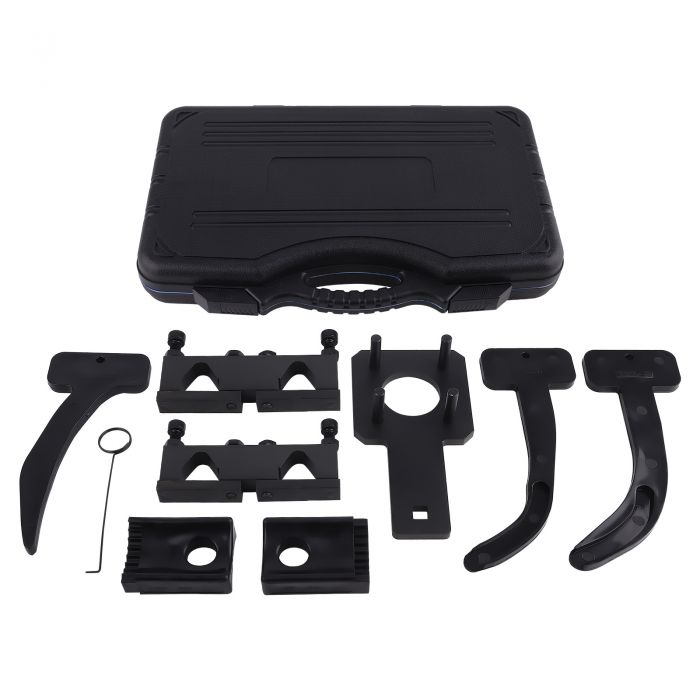

Package included

3 x timing chain holders
2 x phaser locks
1 x camshaft tensioner locking pin
2 x camshaft holding tool
1 x crankshaft pulley wrench

Feature

Function: The camshaft phaser timing tool is used to hold the Camshaft/Phaser`s while performing the loosening and tightening of the Oil Control Valves, and used to loosen the tension on the Timing Chains during Camshaft and Phaser service procedures; This camshaft holding tool is used to hold the camshaft in a right position when adjust timing or replace timing chain; This crankshaft vibration harmonic damper holder tool is used to hold the crankshaft pulley while they pulley retaining bolt is loosened/tightene

Note

Tips: 10200-1 & 10200-3 are used on Drivers Side, 10200-2 is used on Passenger's Side. 2012 and newer models also require 10369A. Some 2011 models may also require 10369A, depending on the size of bolt in the front cover tightening sequence on the right bank (cylinder head closest to firewall). If that bolt head is 13MM you need 10369A
