Truck Long to Short Bed Frame Conversion Kit compatible for Chevy GMC C10 1/4 Heavy Plate

SKU

3002920435

Skip to the beginning of the images gallery

Introduction

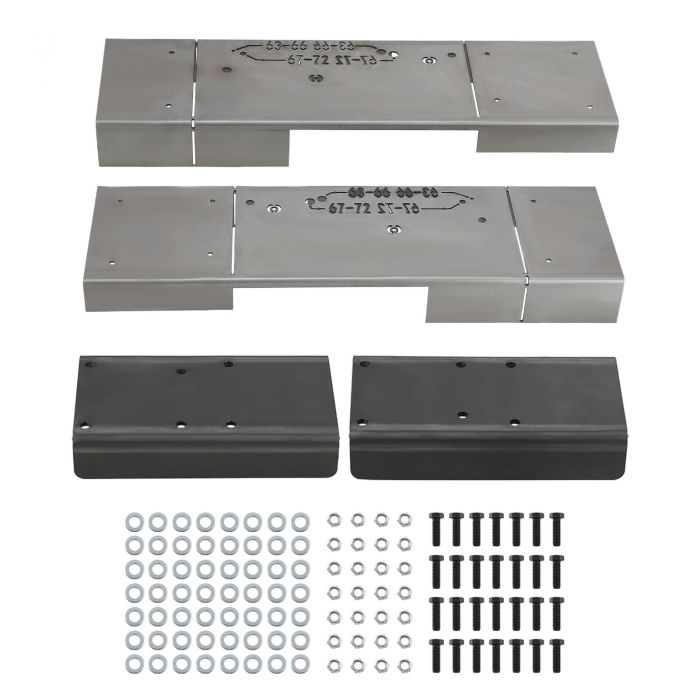

This 1963-72 compatible for Chevy C10 long bed to short bed frame conversion includes a laser etched steel template with all hole locations clearly marked and high strength steel inner "C" channel brace and all necessary hardware to install the kit。

Application

Will Also Work on 3/4 Ton Coil Spring Trucks, 67-72 3/4 ton trucks will require changing the Cab Mounts to 1/2 ton C10 Mounts
Driveshaft will need to be Shortened before re-installation
Not designed to work on 133" wheelbase trucks(Longhorn)
Will not work on 4x4 Trucks
Welding Required
Requires Short Bed Parking Brake Cables and Lines
Converts 128" Wheelbase Trucks to 115" Wheelbase

Feature

Templates For Cutting And Drilling Frame
1/4" Thick Plate (thickest on the market) NOT 3/16" LIKE OTHER KITS AND 4.8 POUNDS HEAVIER MATERIAL
Laser Cut C-Channel to Reattach Shortened Frame
All Grade 8 Mounting Hardware
